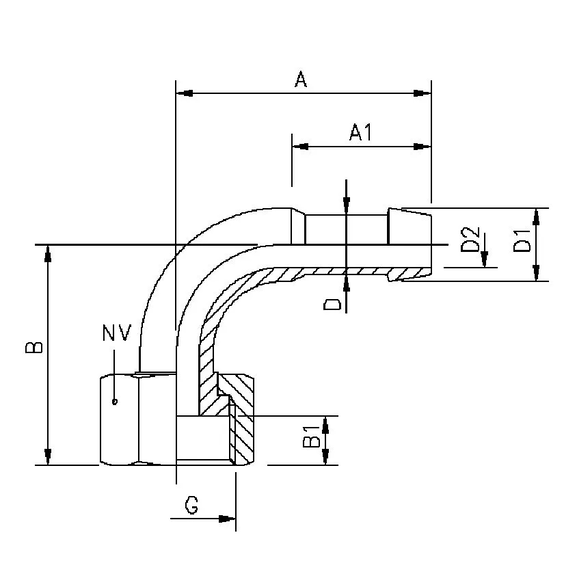

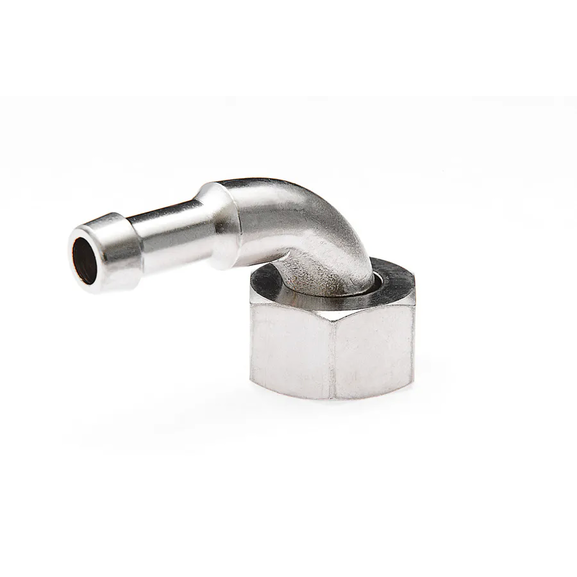

8810 Hose barb adapter elbow
Specifications
| Item number: | Thread G | Hose I.D. mm | Hose I.D. inch. | Dia D. | Dia. D1 | Dia. D2 | A | A1 | B | B1 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8810 3/8x10** | 3/8 | 10 | 3/8 | 8,0 | 10,5 | 6,5 | 52,0 | 20,0 | 30,0 | 7,0 | 19 |
| 8810 1/2x10 | 1/2 | 10 | 3/8 | 9,0 | 11,5 | 7,0 | 43,5 | 22,0 | 25,0 | 7,5 | 24 |
| 8810 3/4x10 | 3/4 | 10 | 3/8 | 9,0 | 11,5 | 7,0 | 46,0 | 22,0 | 22,5 | 10,0 | 32 |
About the product
Hose barb adapter elbow with flange. Delivered with nut with parallel pipe thread.Delivered zincplated.
Delivered excl. gasket. Please see item nr. 8809PF and 8809PG for more information.
** On request.
