1034B Hose barb adapter elbow

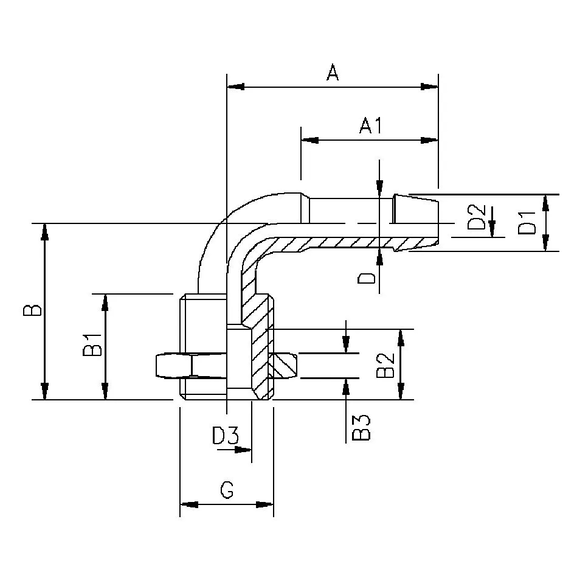

Specifications
| Item number: | A | A1 | B | B1 | Thread G | Dia. D1 | Dia D. | Hose I.D. mm | Dia. D2 | Dia. D3 | B2 | B2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1034B 1/8x6** | 29,5 | 20,0 | 24,0 | 14,0 | 1/8 | 8 | 7,0 | 6 | 4,1 | 6,1 | 5,5 | 3,5 |
| 1034B 1/4x6 | 29,5 | 20,0 | 25,0 | 15,0 | 1/4 | 8 | 7,0 | 6 | 4,1 | 6,1 | 5,5 | 3,5 |
| 1034B 3/8x10** | 34,0 | 20,0 | 30,0 | 16,0 | 3/8 | 12,0 | 11,0 | 10 | 7,0 | 10,1 | 6,0 | 3,5 |
About the product

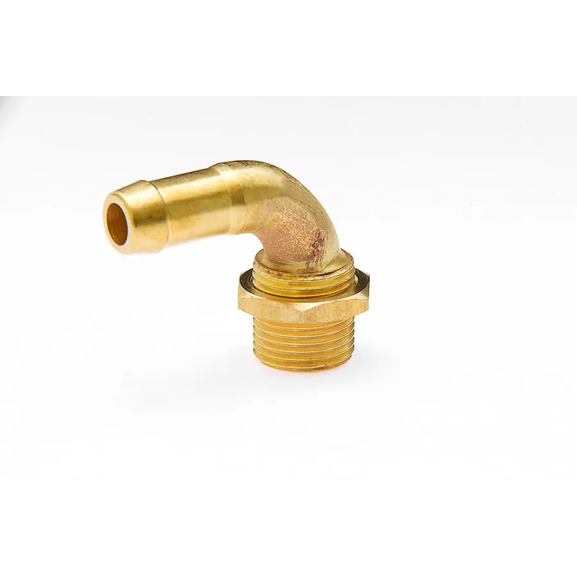

Hose barb adapter elbow with parallel pipe thread and with lock nut 1121B.**On request.
