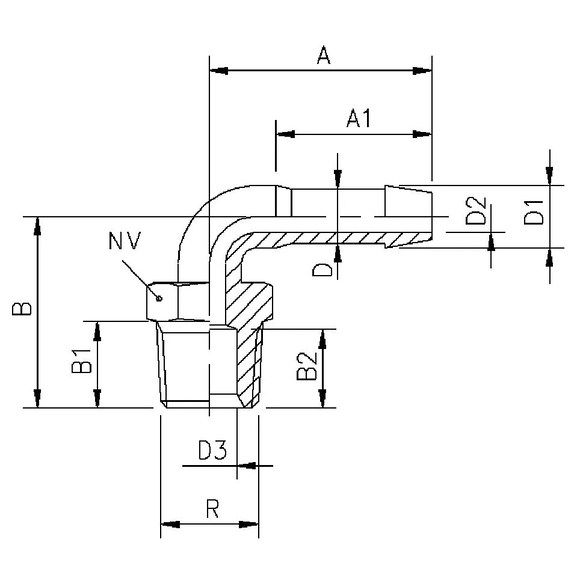

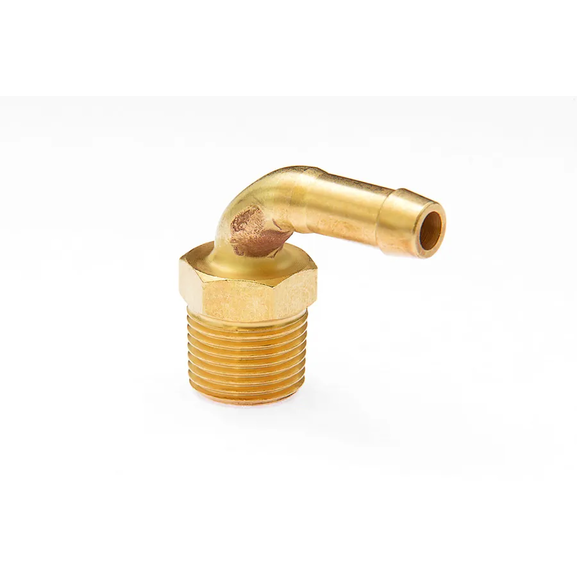

1033B Hose barb adapter elbow with NPT
Specifications
| Item number: | Thread NPT | Hose I.D. mm | Hose I.D. inch. | Dia D. | Dia. D1 | Dia. D2 | Dia. D3 | A | A1 | B | B1 | B2 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1033B 6x1/4NPT | 1/4N | 6 | 1/4 | 7,0 | 7,0 | 8,0 | 4,0 | 29,5 | 20,0 | 24,0 | 14,0 | 10,0 | 14 |
