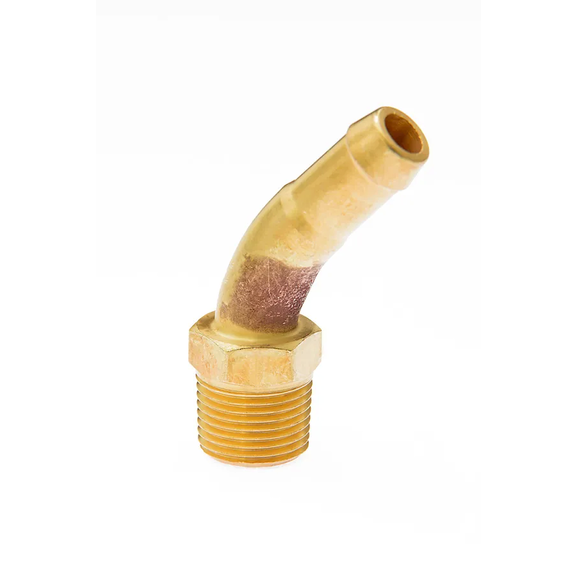

1033B Hose barb adapter elbow 45°
Specifications

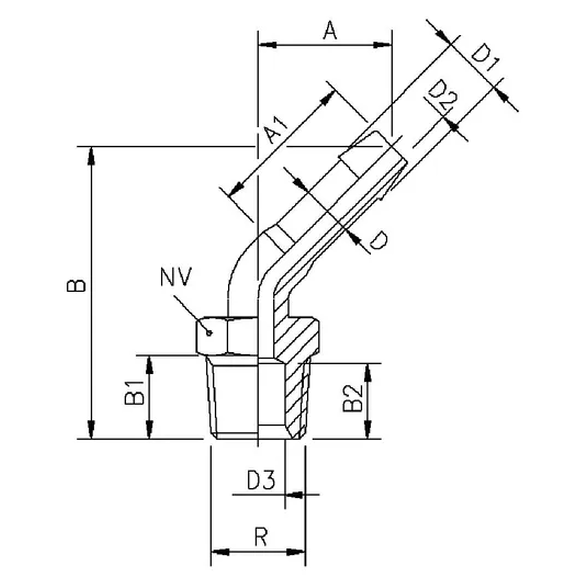

| Item number: | A | A1 | HEX | Thread R | B | B1 | Dia. D1 | Dia D. | Hose I.D. mm | Hose I.D. inch. | Dia. D2 | Dia. D3 | B2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1033B 1/8x6 45 | 22,0 | 20,0 | 11 | 1/8 | 40,0 | 10,0 | 8,0 | 7,0 | 6 45 | 1/4 | 4,1 | 6,1 | 10,0 |
| 1033B 1/4x10 45 | 23,0 | 20,0 | 14 | 1/4 | 48,0 | 11,0 | 12,0 | 11,0 | 10 45 | 3/8 | 7,0 | 8,1 | 10,0 |
| 1033B 3/4x10 45 | 23,0 | 20,0 | 17 | 3/8 | 51,0 | 13,0 | 12,0 | 11,0 | 10 45 | 3/8 | 7,0 | 10,1 | 12,0 |
