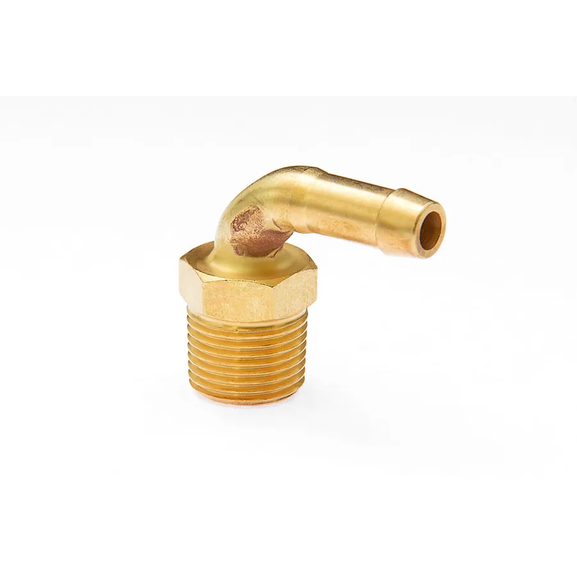

1033B Hose barb adapter elbow
Specifications

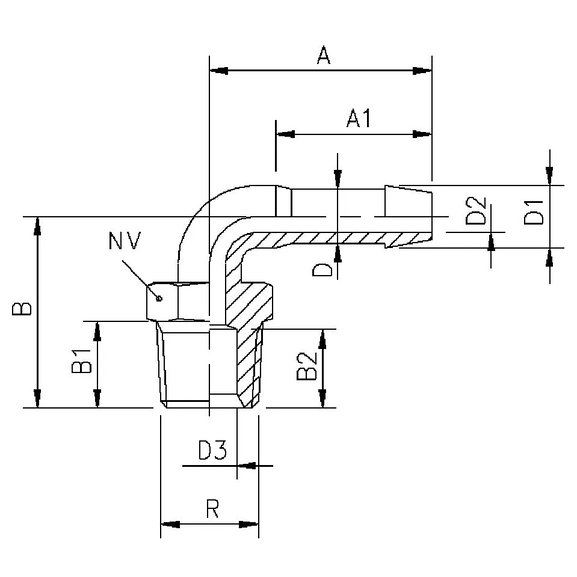

| Item number: | A | A1 | HEX | Thread R | B | B1 | Dia. D1 | Dia D. | Hose I.D. mm | Hose I.D. inch. | Dia. D2 | Dia. D3 | B2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1033B 1/8x8 | 30,0 | 20,0 | 11 | 1/8 | 26,0 | 10,0 | 9,5 | 8,5 | 8 | 5/16 | 5,5 | 6,1 | 10,0 |
| 1033B 1/8x6 | 28,5 | 20,0 | 11 | 1/8 | 25,0 | 10,0 | 8,0 | 7,0 | 6 | 1/4 | 4,1 | 6,2 | 10,0 |
| 1033B 1/4x6 | 27,5 | 20,0 | 14 | 1/4 | 23,0 | 11,0 | 8,0 | 7,0 | 6 | 1/4 | 4,1 | 8,1 | 10,0 |
| 1033B 1/4x8 | 30,0 | 20,0 | 14 | 1/4 | 27,5 | 11,0 | 9,5 | 8,5 | 8 | 5/16 | 5,5 | 8,1 | 10,0 |
| 1033B 1/4x10 | 34,5 | 20,0 | 14 | 1/4 | 30,0 | 11,0 | 12,0 | 11,0 | 10 | 3/8 | 7,0 | 8,1 | 10,0 |
| 1033B 3/8x8 | 30,0 | 20,0 | 17 | 3/8 | 30,0 | 13,0 | 9,5 | 8,5 | 8 | 5/16 | 5,5 | 10,1 | 6,0 |
| 1033B 3/8x12 | 40,0 | 20,0 | 17 | 3/8 | 40,0 | 13,0 | 13,5 | 12,0 | 12 | 1/2 | 9,0 | 10,1 | 6,0 |
| 1033B 1/2x12 | 38,5 | 20,0 | 21 | 1/2 | 38,0 | 16,0 | 13,5 | 12,0 | 12 | 1/2 | 9,0 | 15,1 | 12,0 |
