8809PF Fibre gasket
Specifications

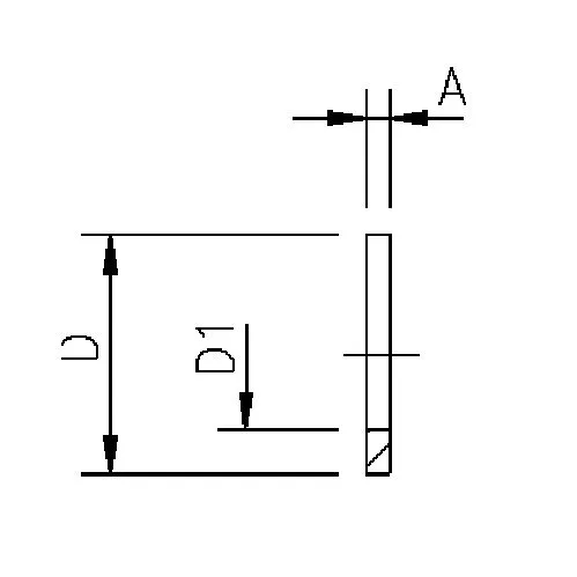

| Item number: | Size int. pipe thread | Dia D. | Dia. D1 | A |
|---|---|---|---|---|
| 8809PF 1/2 | 1/2 | 18,0 | 12,0 | 2,0 |
| 8809PF 1/4 | 1/4 | 11,0 | 6,0 | 1,5 |
| 8809PF 1/8** | 1/8 | 8,0 | 4,5 | 1,5 |
| 8809PF 3/4 | 3/4 | 23,5 | 17,0 | 2,0 |
| 8809PF 3/8 | 3/8 | 15,0 | 9,5 | 1,5 |
| 8809PF 1" | 1" | 29,5 | 22,0 | 2,0 |
About the product

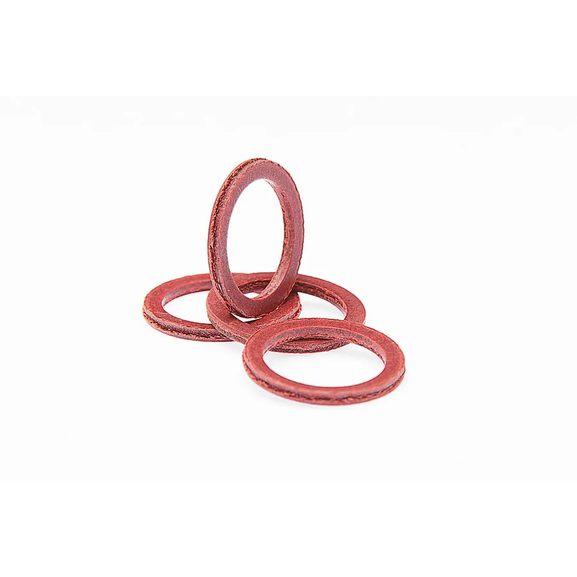

Fibre gasket.Material: DIN 7737 type Vf 3110.
Useful in the temperature range -20°C til +90°C.
