8815 Cap RS

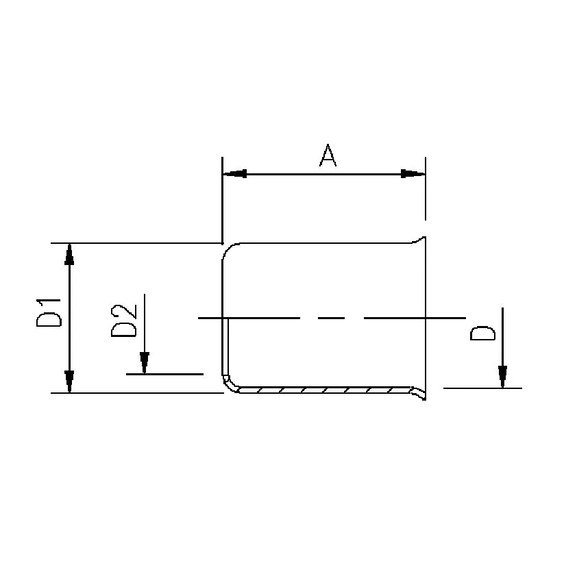

Specifications
| Item number: | Size mm | Dia D. | Dia. D1 | Dia. D2 | A |
|---|---|---|---|---|---|
| 8815 11RS | 11RS | 11,1 | 12,3 | 8,5 | 20,0 |
| 8815 12RS | 12RS | 12,1 | 13,3 | 8,5 | 20,0 |
| 8815 13RS | 13RS | 13,1 | 14,3 | 8,8 | 20,0 |
| 8815 14RS | 14RS | 14,1 | 15,3 | 11,0 | 20,0 |
| 8815 15RS | 15RS | 15,1 | 16,3 | 12,8 | 20,0 |
| 8815 17RS | 17RS | 17,1 | 18,3 | 12,8 | 20,0 |
| 8815 18RS | 18RS | 18,1 | 19,3 | 14,8 | 20,0 |
| 8815 22RS | 22RS | 22,1 | 23,3 | 16,0 | 24,0 |
About the product

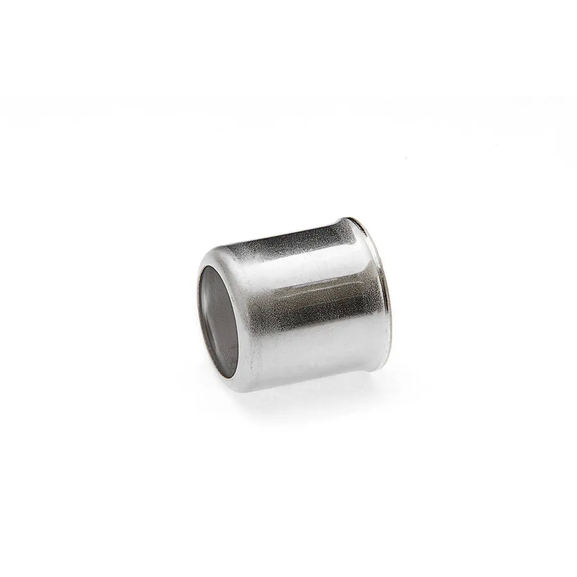

Cap in stainless steel.Material: AISI304
Opposite to our other fittings these caps are supplied in packs of 100 pieces (other quantities can be supplied following an extra charge).
Calculation of the cap's size:
Male hose measure + 1 mm
Please note! The sizes 11 and 19 mm are without collar.
