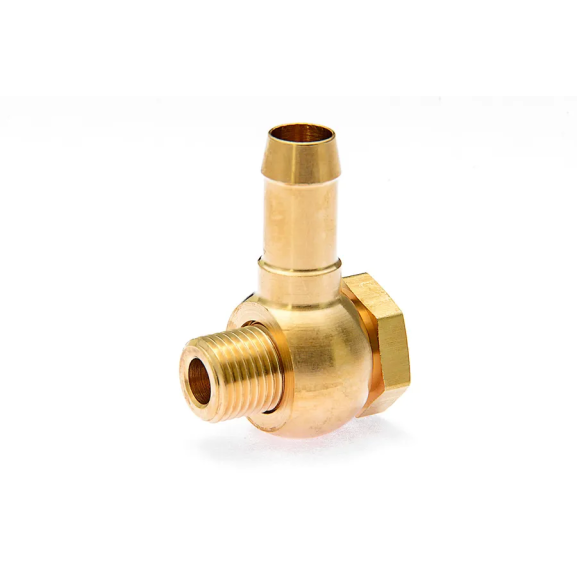

887622 Banjo nipple with metric thread
Specifications

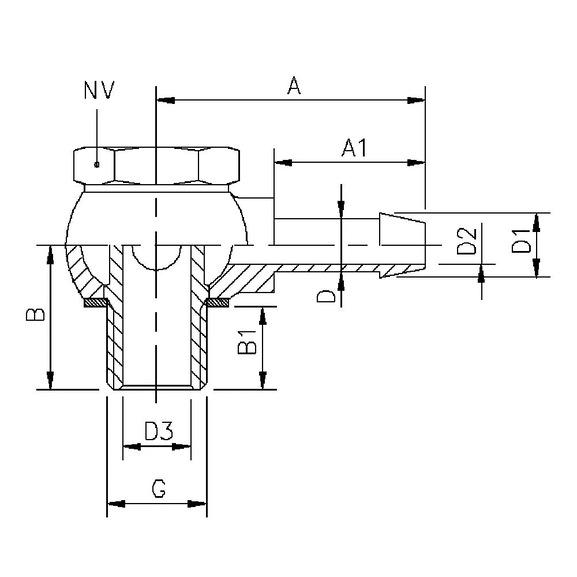

| Item number: | Metric thread M | Hose I.D. mm | Hose I.D. inch. | Dia D. | Dia. D1 | Dia. D2 | Dia. D3 | A | A1 | B | B1 | HEX |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 887622 6x10x1 | 10x1 | 6 | 1/4 | 7,0 | 8,5 | 5,0 | 5,5 | 31,5 | 20,0 | 13,0 | 7,0 | 14 |
| 887622 8x10x1 | 10x1 | 8 | 5/16 | 8,5 | 9,8 | 6,0 | 5,5 | 31,5 | 20,0 | 13,0 | 7,0 | 14 |
| 887622 6x14x1,5 | 14x1,5 | 6 | 1/4 | 7,0 | 8,5 | 5,0 | 9,0 | 35,5 | 20,0 | 18,0 | 10,0 | 19 |
| 887622 10x14x1,5 | 14x1,5 | 10 | 3/8 | 11,0 | 12,0 | 9,0 | 9,0 | 35,5 | 20,0 | 18,0 | 10,0 | 19 |
| 887622 4x8x1 | 8x1 | 4 | 5,0 | 6,0 | 3,0 | 4,0 | 30,5 | 20,0 | 12,0 | 7,0 |
About the product
Banjo nipple for hose with plug with metric thread and gasket.Delivered with cobber washer 1031.
