887622 Banjo nipple
Specifications

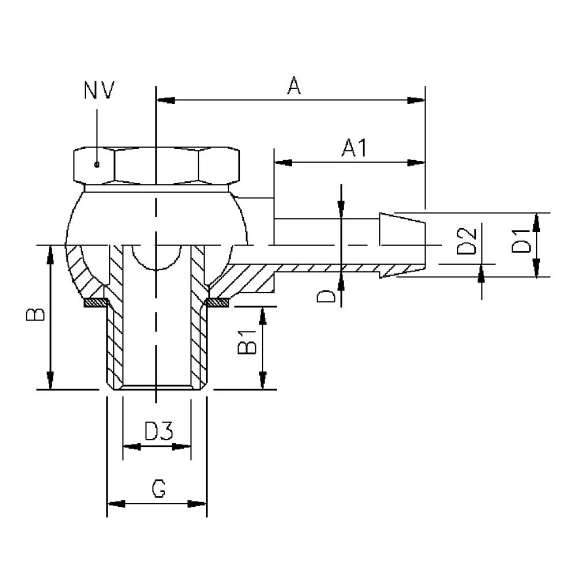

| Item number: | A | A1 | HEX | B | B1 | Thread G | Dia. D1 | Dia D. | Hose I.D. mm | Hose I.D. inch. | Dia. D2 | Dia. D3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 887622 5x1/8** | 31,5 | 20,0 | 14 | 13,0 | 7,0 | 1/8 | 6,5 | 5,0 | 5 | 3/16 | 3,0 | 5,5 |
| 887622 6x1/8 | 31,5 | 20,0 | 14 | 13,0 | 7,0 | 1/8 | 8,5 | 7,0 | 6 | 1/4 | 5,0 | 5,5 |
| 887622 8x1/8** | 31,5 | 20,0 | 14 | 13,0 | 7,0 | 1/8 | 9,8 | 8,5 | 8 | 5/16 | 6,0 | 5,5 |
| 887622 6x1/4** | 35,5 | 20,0 | 19 | 18,0 | 10,0 | 1/4 | 8,5 | 7,0 | 6 | 1/4 | 5,0 | 9,0 |
| 887622 10x1/4 | 35,5 | 20,0 | 19 | 18,0 | 10,0 | 1/4 | 12,0 | 11,0 | 10 | 3/8 | 9,0 | 9,0 |
| 887622 10x3/8 | 39,0 | 20,0 | 22 | 19,0 | 10,0 | 3/8 | 12,0 | 11,0 | 10 | 3/8 | 9,0 | 11,0 |
About the product

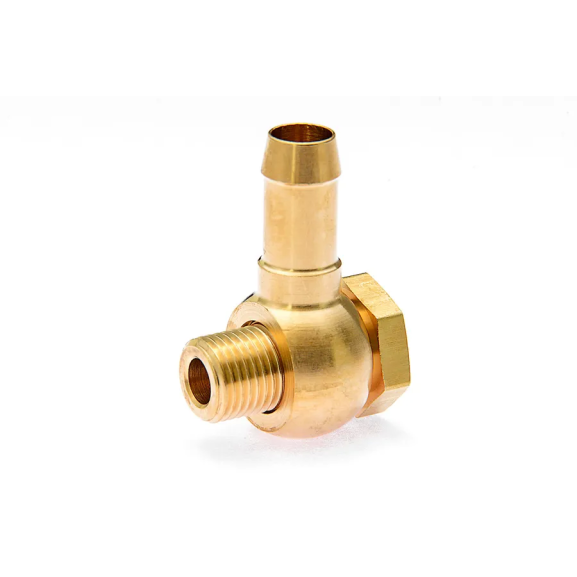

Banjo nipple for hose with plug with parallel thread and gasket.Delivered with cobber washer 1031.
** On request.
