72F Tee (inch)
Specifications

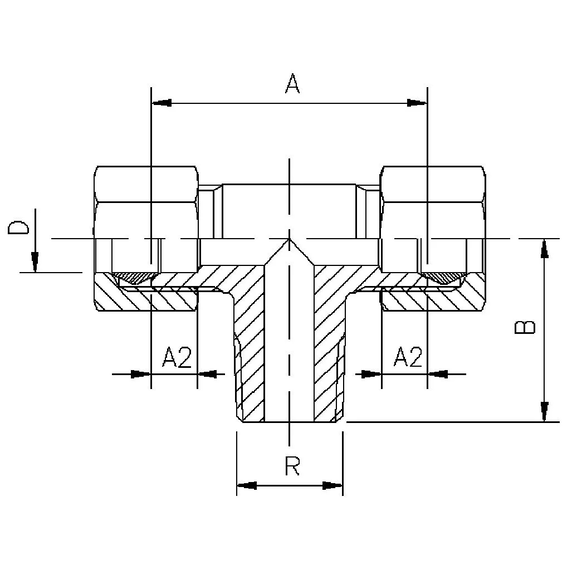

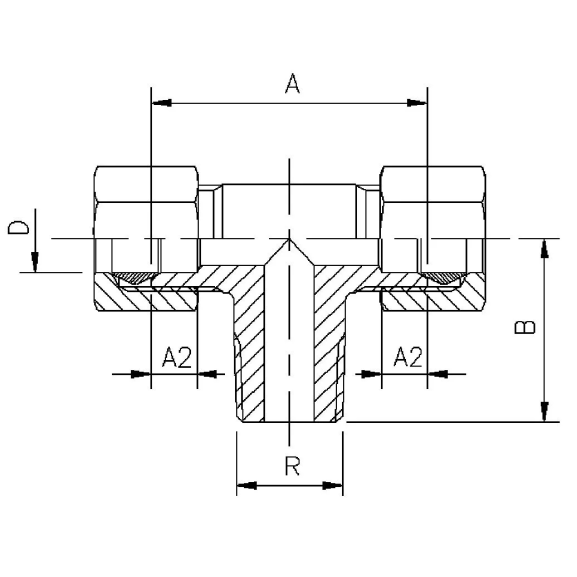

| Item number: | Tube O.D. D inch. | Thread R | A | A2 | B |
|---|---|---|---|---|---|
| 72F 3/16x1/8 ** | 3/16 | 1/8 | 32,0 | 5,5 | 18,5 |
| 72F 3/8x1/4 ** | 3/8 | 1/4 | 41,0 | 6,0 | 26,0 |
| 72F 1/2x3/8 ** | 1/2 | 3/8 | 39,0 | 7,0 | 23,0 |
| 72F 5/8x1/2 ** | 5/8 | 1/2 | 49,0 | 8,0 | 27,7 |
About the product

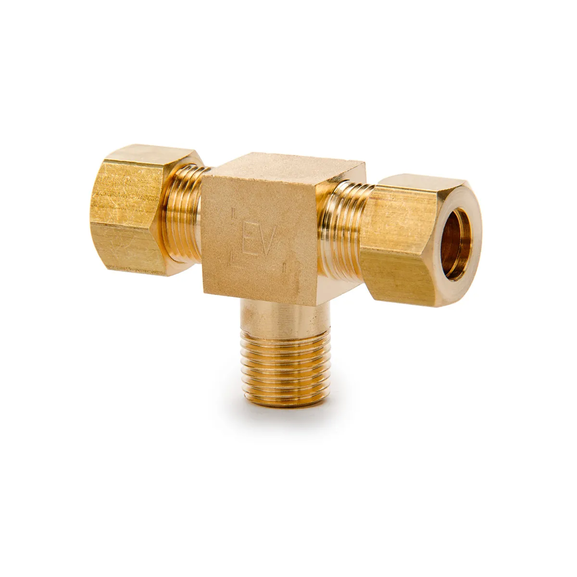

Tee with sleeves and nuts on horizontal ends for pipe in inches with pipe thread.** On request.
