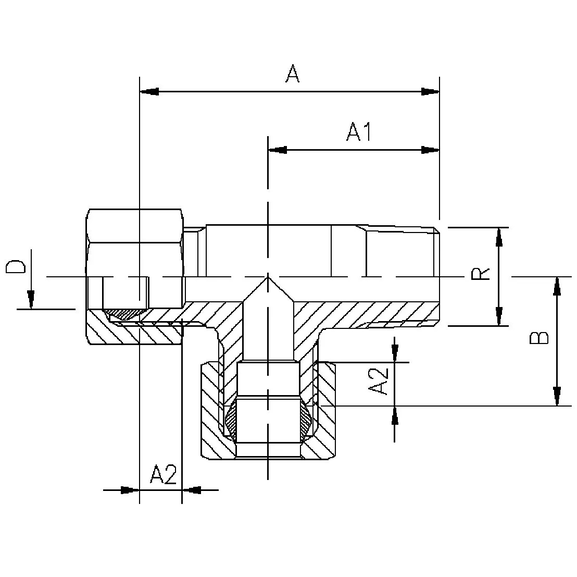

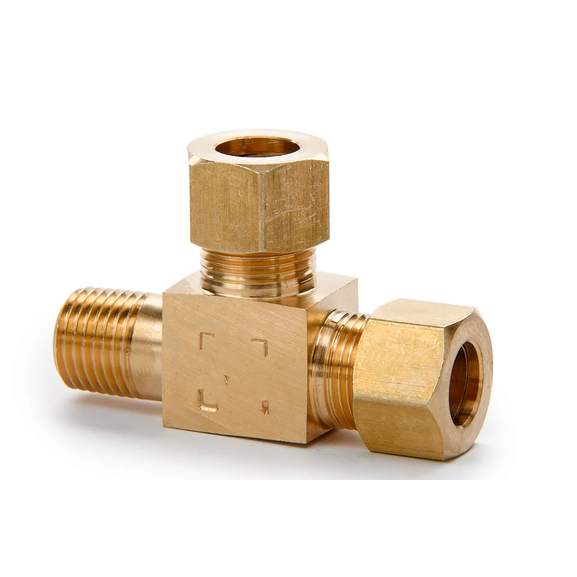

71F Tee (inch)
Specifications
| Item number: | Tube O.D. D inch. | Thread R | A | A1 | A2 | B |
|---|---|---|---|---|---|---|
| 71F 5/16x1/8 ** | 5/16 | 1/8 | 37,0 | 21,0 | 5,5 | 17,0 |
| 71F 5/16x1/4 ** | 5/16 | 1/4 | 37,0 | 20,0 | 5,5 | 19,0 |
| 71F 1/4x1/8 ** | 1/4 | 1/8 | 38,5 | 20,0 | 5,5 | 18,0 |
| 71F 1/4x1/4 | 1/4 | 1/4 | 38,5 | 20,0 | 5,5 | 18,0 |
| 71F 3/8x1/4 ** | 3/8 | 1/4 | 47,0 | 25,5 | 6,0 | 20,0 |
