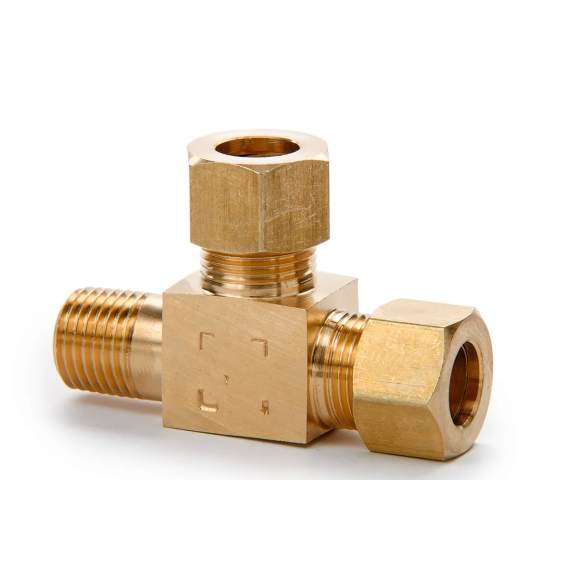

71F Tee

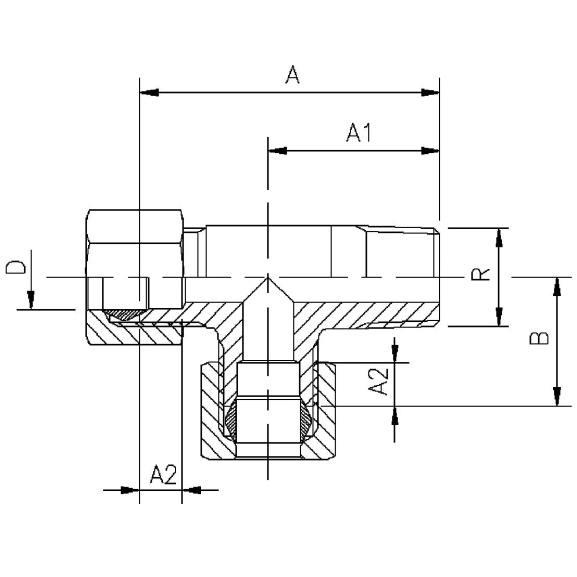

Specifications
| Item number: | Tube O.D. D mm | Thread R | A | A1 | A2 | B |
|---|---|---|---|---|---|---|
| 71F 6x1/8 ** | 6 | 1/8 | 38,5 | 20,0 | 5,5 | 18,0 |
| 71F 6x1/4 ** | 6 | 1/4 | 38,5 | 20,0 | 5,5 | 18,0 |
| 71F 8x1/8 ** | 8 | 1/8 | 37,0 | 21,0 | 5,5 | 17,0 |
| 71F 8x1/4 ** | 8 | 1/4 | 37,0 | 20,0 | 5,5 | 19,0 |
| 71F 10x1/4 ** | 10 | 1/4 | 47,0 | 25,5 | 6,0 | 20,0 |
| 71F 12x3/8 ** | 12 | 3/8 | 47,0 | 26,0 | 7,0 | 21,5 |
| 71F 15x3/8 ** | 15 | 3/8 | 49,0 | 26,0 | 8,0 | 23,0 |
| 71F 15x1/2 ** | 15 | 1/2 | 54,0 | 31,0 | 8,0 | 23,5 |
| 71F 16x1/2 ** | 16 | 1/2 | 51,0 | 28,0 | 8,5 | 23,0 |
About the product
Tee with sleeves and nuts at two ends for pipe in mm with pipe thread.** On request.
