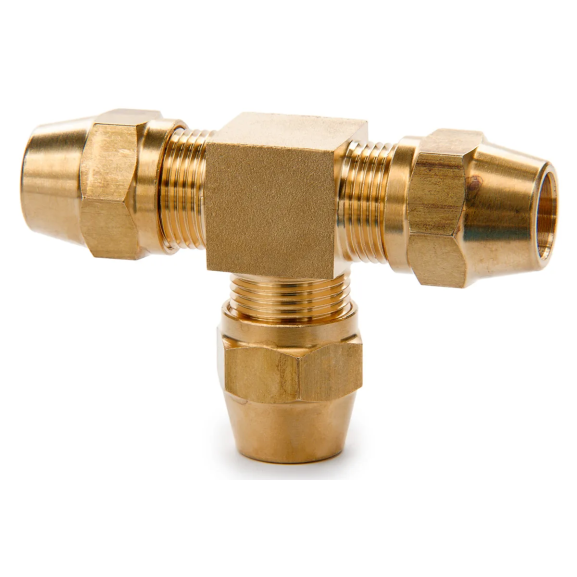

64LB Tee (inch)
Specifications
| Item number: | Tube O.D. D mm | A | A2 | B |
|---|---|---|---|---|
| 64LB 1/4** | 1/4 | 33,0 | 6,5 | 16,5 |
| 64LB 3/8** | 3/8 | 33,0 | 6,5 | 16,5 |
| 64LB 1/2** | 1/2 | 40,0 | 7,5 | 20,0 |
| 64LB 5/8** | 5/8 | 44,0 | 8,0 | 22,0 |
About the product
Tee for air brakes with sleeves and nuts for pipe in inches.** On request.
