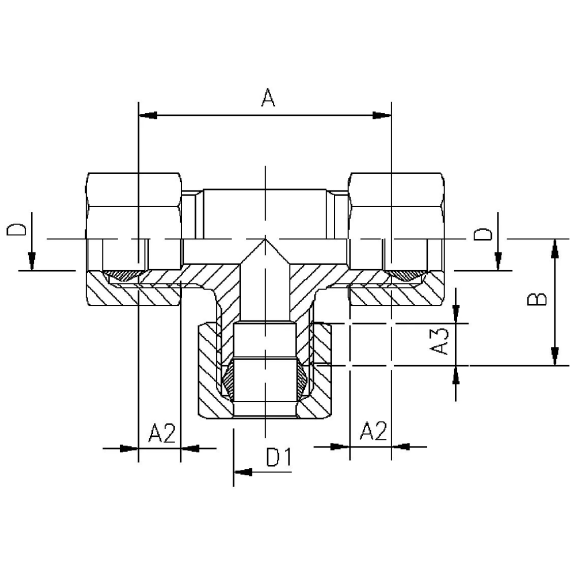

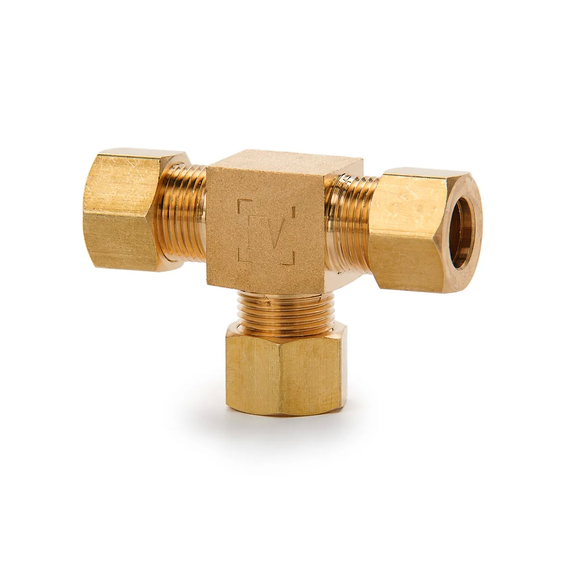

64F Tee (inch)
Specifications
| Item number: | Tube O.D. D inch. | Tube O.D. D1 inch. | A | A2 | A3 | B |
|---|---|---|---|---|---|---|
| 64F 1/8 | 1/8 | 1/8 | 30,0 | 5,0 | 5,0 | 15,0 |
| 64F 3/16 | 3/16 | 3/16 | 32,0 | 5,0 | 5,0 | 16,0 |
| 64F 5/16 | 5/16 | 5/16 | 34,0 | 5,5 | 5,5 | 17,0 |
| 64F 3/8 | 3/8 | 3/8 | 41,0 | 6,0 | 6,0 | 21,0 |
About the product
Tee with sleeves and nuts for pipe in inches.** On request.
