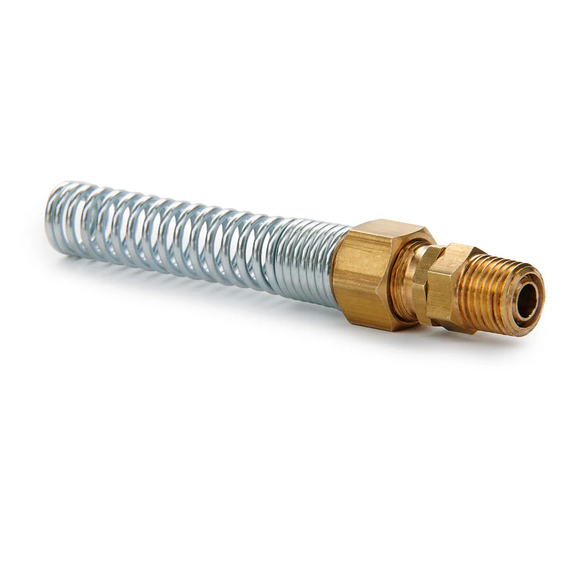

68FR Swivel
Specifications

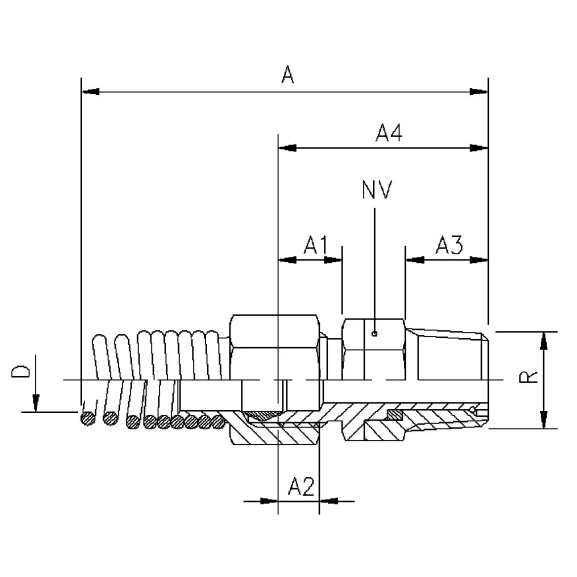

| Item number: | A | A1 | HEX | Thread R | A2 | Tube O.D. D mm | A3 | A4 |
|---|---|---|---|---|---|---|---|---|
| 68FR 10x1/4** | 105,0 | 9,0 | 14 | 1/4 | 6,0 | 10 | 11,0 | 28,5 |
| 68FR 12x3/8 | 100,0 | 10,5 | 18 | 3/8 | 7,0 | 12 | 13,0 | 32,5 |
About the product
Swivel with sleeve, nut and spring for pipe in mm with pipe thread.Delivered with O-ring NBR 70 shore A. Temperatur from -25° C to +80° C.
Should not be used at pressure over 10 bar.
** On request.
