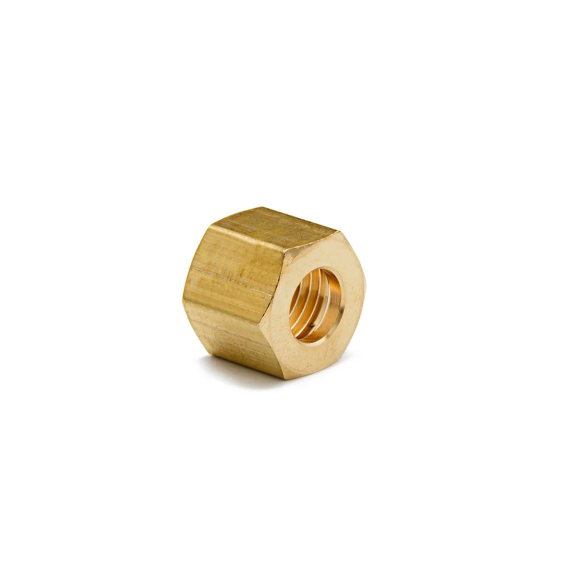

61M Nut for sleeve 60F/60N
Specifications

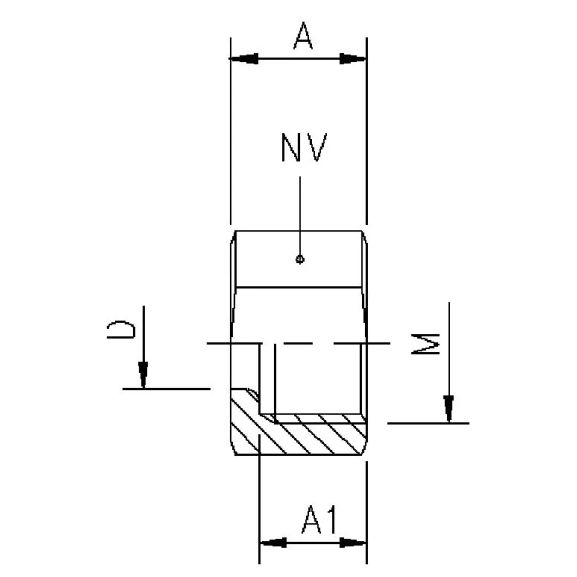

| Item number: | A | A1 | HEX | Metric thread M | Tube O.D. D |
|---|---|---|---|---|---|
| 61M 5x10x1** | 10,5 | 8,0 | 13 | 10x1 | 5 |
| 61M 6x12x1,5 | 11,0 | 8,5 | 15 | 12x1,5 | 6 |
| 61M 7,5x10x1** | 10,5 | 8,0 | 13 | 10x1 | 7,5 |
| 61M 7,5x12x1 | 11,0 | 8,5 | 15 | 12x1 | 7,5 |
| 61M 8x12x1,5** | 11,0 | 8,5 | 15 | 12x1,5 | 8 |
| 61M 8x14x1,5 | 12,0 | 9,5 | 17 | 14x1,5 | 8 |
| 61M 10x16x1,5 | 13,5 | 10,5 | 19 | 16x1,5 | 10 |
| 61M 12x16x1,5 | 13,5 | 10,5 | 17 | 16x1,5 | 12 |
| 61M 12x18x1,5 | 14,0 | 11,0 | 21 | 18x1,5 | 12 |
| 61M 14x18x1,5** | 14,0 | 11,0 | 22 | 18x1,5 | 14 |
| 61M 14x22x1,5 | 15,5 | 12,5 | 25 | 22x1,5 | 14 |
About the product
Nut with metric thread.** On request.
