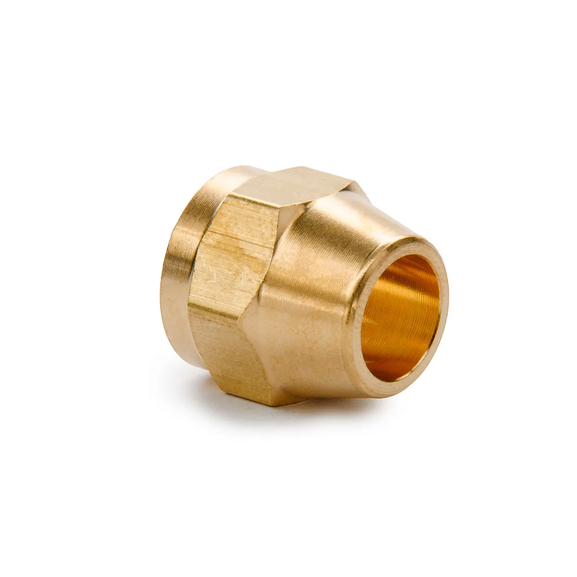

61LB Nut (inch)

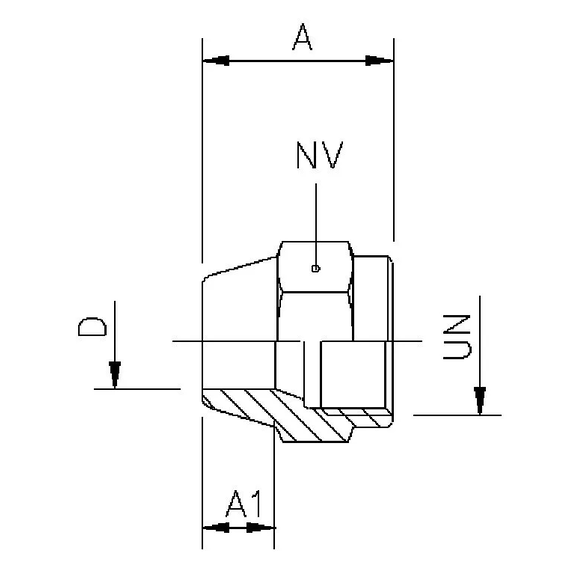

Specifications
| Item number: | Thread UN | Tube O.D. D inch. | A | A1 | HEX |
|---|---|---|---|---|---|
| 61LB 1/4** | 7/16-24 | 1/4 | 14,5 | 5,5 | 13 |
| 61LB 1/2** | 11/16-20 | 1/2 | 21,5 | 10,0 | 20 |
| 61LB 5/8** | 13/16-18 | 5/8 | 25,0 | 12,0 | 23 |
| 61LB 3/8** | 17/32-24 | 3/8 | 18,5 | 8,0 | 16 |
About the product
Nut for air brakes for pipe in inches with UN thread.** On request.
