61LB Nut

Specifications

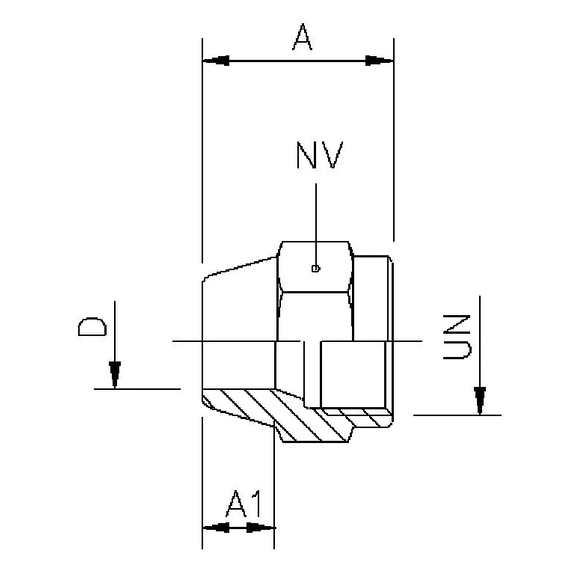

Item number: Thread UN Tube O.D. D mm A A1 HEX
61LB 8 1/2-24 8 16,5 6,5 15
61LB 6 7/16-24 6 14,5 5,5 13
61LB 10** 9/16-24 10 18,5 8,0 17
61LB 12** 11/16-20 12 21,5 10,0 20

About the product

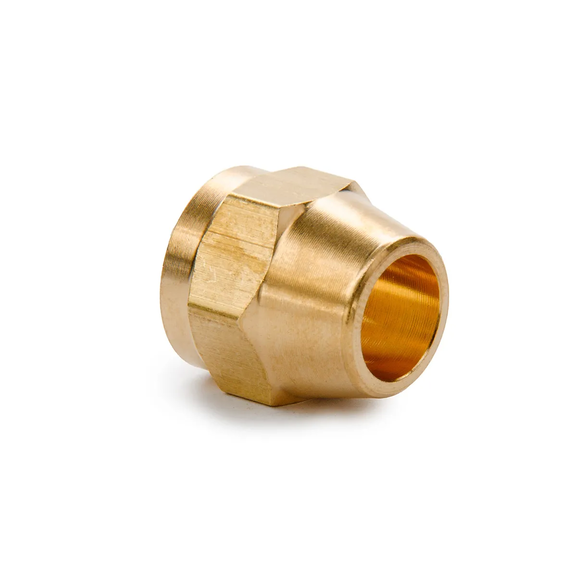

Nut for air brakes for pipe in mm with UN thread.

** On request.
