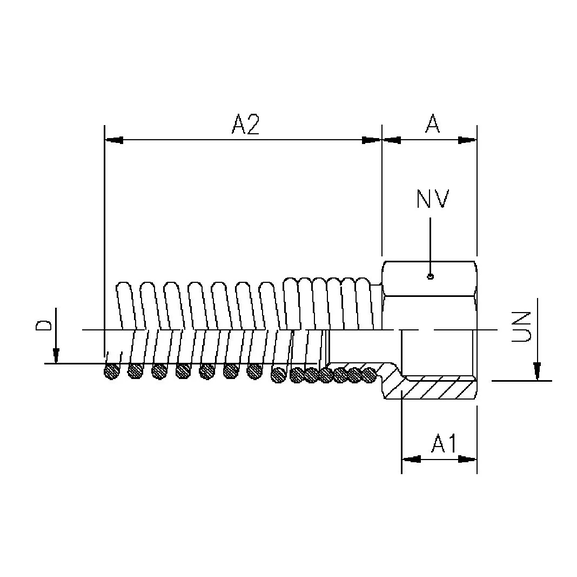

61FR Nut with spring
Specifications
| Item number: | Thread UN | Tube O.D. D mm | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|
| 61FR 8 | 1/2-24 | 8 | 12,0 | 9,5 | 57,0 | 15 |
| 61FR 10 | 9/16-24 | 10 | 11,5 | 8,5 | 64,0 | 17 |
| 61FR 12 | 11/16-20 | 12 | 13,0 | 9,5 | 65,0 | 20 |
