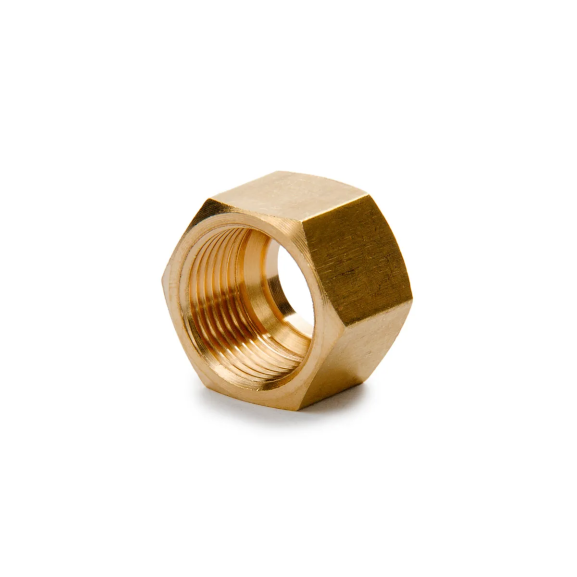

61F Nut

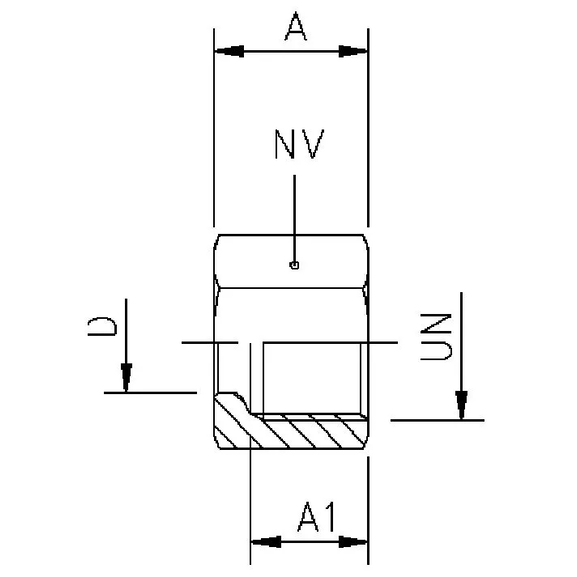

Specifications
| Item number: | VVS code xxx | A | A1 | HEX | Tube O.D. D mm | Thread UN |
|---|---|---|---|---|---|---|
| 61F 8 | 008 | 12,5 | 9,5 | 15 | 8 | 1/2-24 |
| 61F 5 | 005 | 9,5 | 7,0 | 11 | 5 | 3/8-24 |
| 61F 6 | 006 | 10,5 | 7,5 | 13 | 6 | 7/16-24 |
| 61F 3 | 003 | 8,5 | 6,0 | 10 | 3 | 5/16-24 |
| 61F 4 | 004 | 8,5 | 6,0 | 10 | 4 | 5/16-24 |
| 61F 10 | 010 | 11,5 | 8,5 | 17 | 10 | 9/16-24 |
| 61F 12 | 012 | 13,0 | 9,5 | 20 | 12 | 11/16-20 |
| 61F 15 | 015 | 16,0 | 12,5 | 23 | 15 | 13/16-18 |
| 61F 16 | 016 | 16,0 | 12,5 | 23 | 16 | 13/16-18 |
| 61F 18 | 018 | 16,5 | 13,0 | 28 | 18 | 1-18 |
| 61F 20 | 020 | 16,5 | 13,0 | 28 | 20 | 1-18 |
About the product
Nut for pipe in mm with UN thread.VVS code: 044589-xxx
