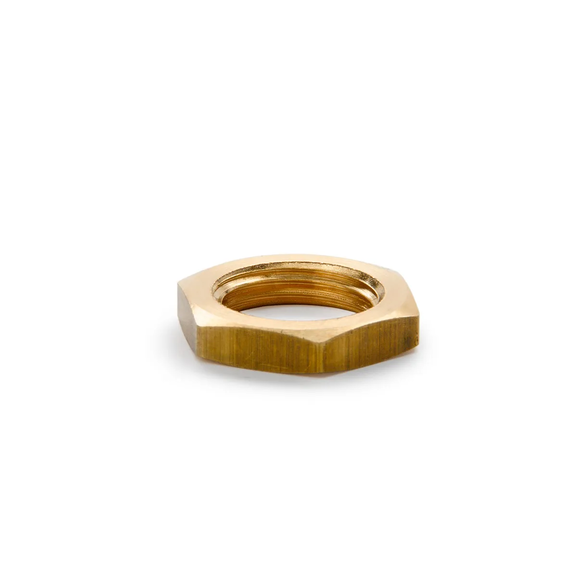

1121F Lock nut
Specifications

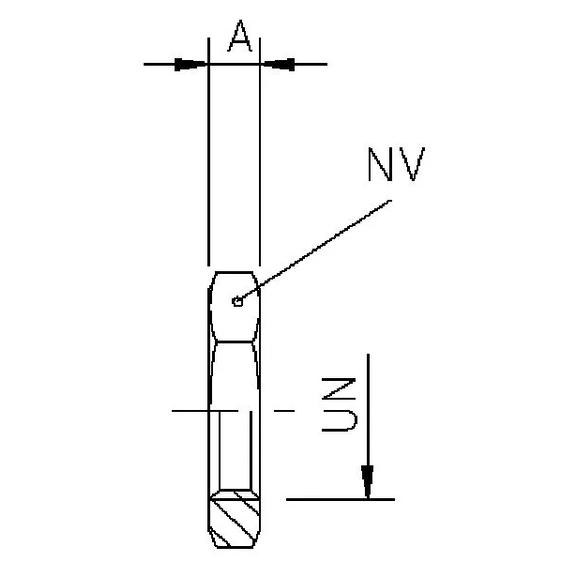

| Item number: | Thread | A | HEX |
|---|---|---|---|
| 1121F 1/2-20** | 1/2-20 | 3,5 | 17 |
| 1121F 1/2-24** | 1/2-24 | 3,5 | 17 |
| 1121F 3/8-24** | 3/8-24 | 3,5 | 14 |
| 1121F 7/16-20** | 7/16-20 | 3,5 | 15 |
| 1121F 7/16-24** | 7/16-24 | 3,5 | 15 |
| 1121F 9/16-18** | 9/16-18 | 5,0 | 18 |
| 1121F 9/16-24 | 9/16-24 | 5,0 | 18 |
| 1121F 11/16-20** | 11/16-20 | 5,0 | 22 |
| 1121F 13/16-18** | 13/16-18 | 5,0 | 25 |
About the product
Lock nut for compression.If pipe thread is requested please see 1121B.
** On request.
