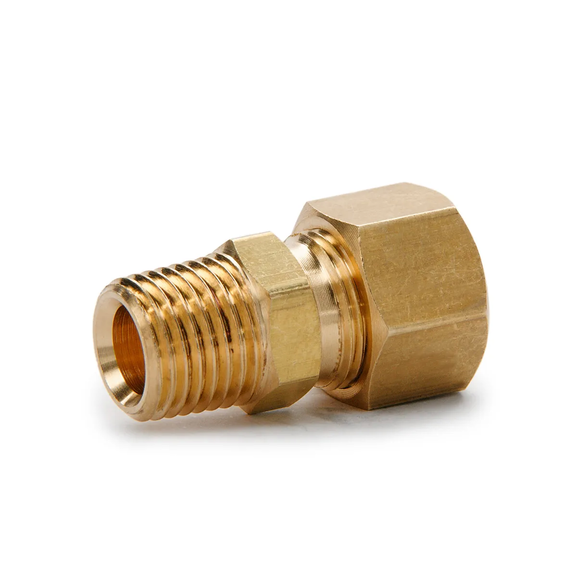

68F Nipple for pipe in mm with pipe thread
Specifications

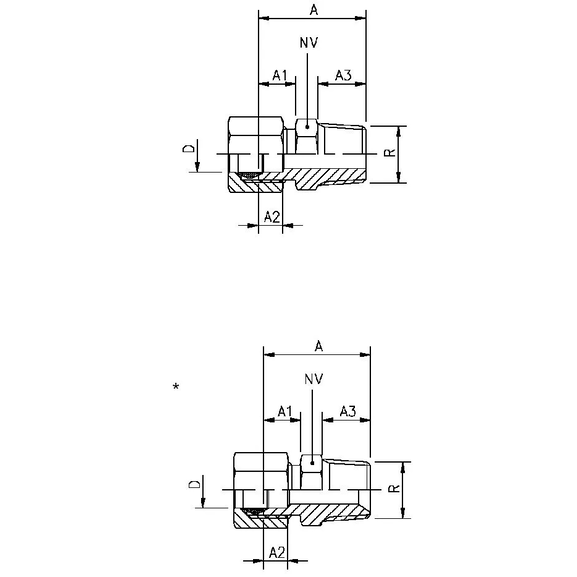

| Item number: | Tube O.D. D mm | Thread R | VVS code xxx | A | A1 | A2 | A3 | HEX |
|---|---|---|---|---|---|---|---|---|
| 68F 3x1/8 | 3 | 1/8 | 003 | 22,0 | 7,0 | 5,0 | 10,0 | 11 |
| 68F 4x1/8 | 4 | 1/8 | 100 | 22,0 | 7,0 | 5,0 | 10,0 | 11 |
| 68F 4x1/4 | 4 | 1/4 | 23,0 | 7,0 | 5,0 | 11,0 | ||
| 68F 5x1/8 | 5 | 1/8 | 005 | 22,5 | 7,5 | 5,0 | 10,0 | 11 |
| 68F 5x1/4 | 5 | 1/4 | 101 | 23,5 | 7,5 | 5,0 | 11,0 | 14 |
| 68F 6x1/8 | 6 | 1/8 | 006 | 23,0 | 8,0 | 5,5 | 10,0 | 11 |
| 68F 6x1/4 | 6 | 1/4 | 102 | 24,0 | 8,0 | 5,5 | 11,0 | 14 |
| 68F 6x3/8 | 6 | 3/8 | 105 | 27,0 | 8,0 | 5,5 | 13,0 | 17 |
| 68F 6x1/2 | 6 | 1/2 | 103 | 30,5 | 8,0 | 5,5 | 16,0 | 21 |
| 68F 8x1/8 | 8 | 1/8 | 104 | 23,5 | 8,5 | 5,5 | 10,0 | 13 |
| 68F 8x1/4 | 8 | 1/4 | 107 | 24,5 | 8,5 | 5,5 | 11,0 | 14 |
| 68F 8x3/8 | 8 | 3/8 | 108 | 27,5 | 8,5 | 5,5 | 13,0 | 17 |
| 68F 8x1/2 | 8 | 1/2 | 109 | 31,0 | 8,5 | 5,5 | 16,0 | 21 |
| *68F 10x1/8 | 10 | 1/8 | 111 | 24,0 | 9,0 | 6,0 | 10,0 | 14 |
| 68F 10x1/4 | 10 | 1/4 | 010 | 25,0 | 9,0 | 6,0 | 11,0 | 14 |
| 68F 10x3/8 | 10 | 3/8 | 116 | 28,0 | 9,0 | 6,0 | 13,0 | 17 |
| 68F 10x1/2 | 10 | 1/2 | 118 | 31,5 | 9,0 | 6,0 | 16,0 | 21 |
| 68F 12x1/4 | 12 | 1/4 | 127 | 26,5 | 10,5 | 7,0 | 11,0 | 18 |
| 68F 12x3/8 | 12 | 3/8 | 012 | 29,5 | 10,5 | 7,0 | 13,0 | 18 |
| 68F 12x1/2 | 12 | 1/2 | 132 | 33,0 | 10,5 | 7,0 | 16,0 | 21 |
| 68F 15x3/8 | 15 | 3/8 | 166 | 30,5 | 11,5 | 8,0 | 13,0 | 21 |
| 68F 15x1/2 | 15 | 1/2 | 015 | 34,0 | 11,5 | 8,0 | 16,0 | 21 |
| 68F 16x1/4 | 16 | 1/4 | 29,0 | 11,5 | 8,0 | 11,0 | ||
| 68F 16x3/8 | 16 | 3/8 | 31,0 | 11,5 | 8,0 | 13,0 |
About the product
Nipple with sleeve and nut for pipe in mm with pipe thread.VVS code: 044502-xxx
