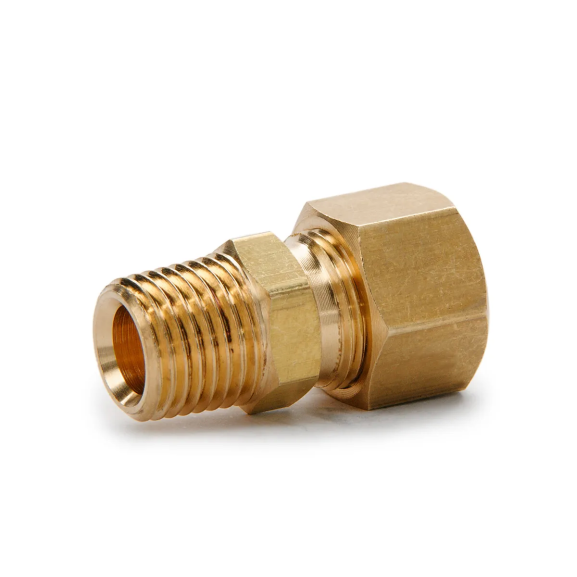

68F Nipple for pipe in mm with NPT thread
Specifications

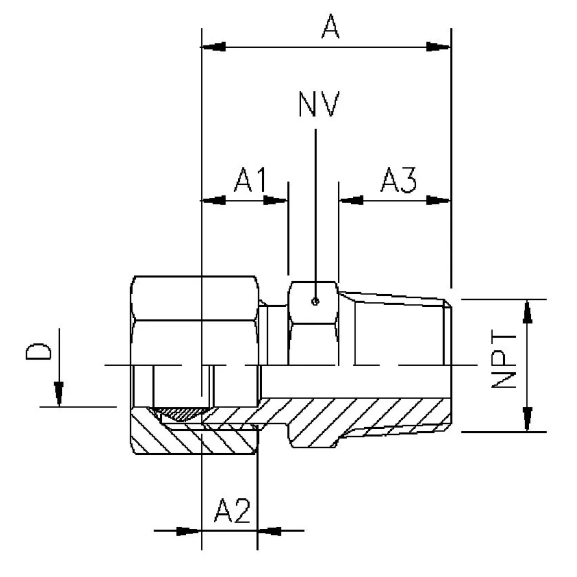

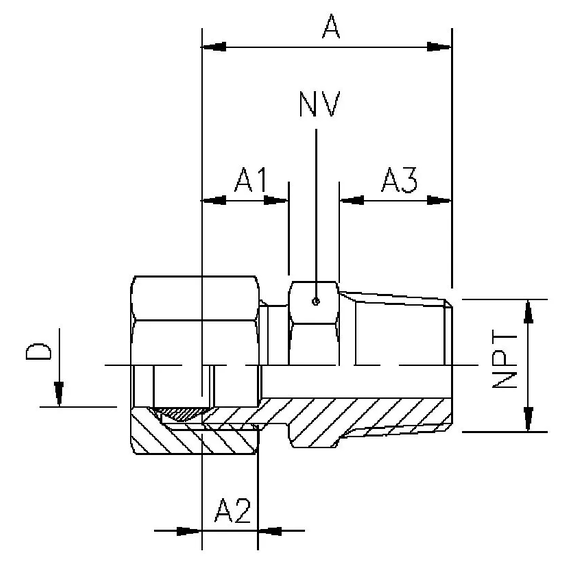

| Item number: | Tube O.D. D mm | Thread NPT | A | A1 | A2 | A3 | HEX |
|---|---|---|---|---|---|---|---|
| 68F 3x1/8N | 3 | 1/8N | 22,0 | 7,0 | 5,0 | 10,0 | 11 |
| 68F 8x1/4N | 8 | 1/4N | 24,5 | 8,5 | 5,5 | 11,0 | 14 |
| 68F 10x1/4N | 10 | 1/4N | 25,0 | 9,0 | 6,0 | 11,0 | 14 |
