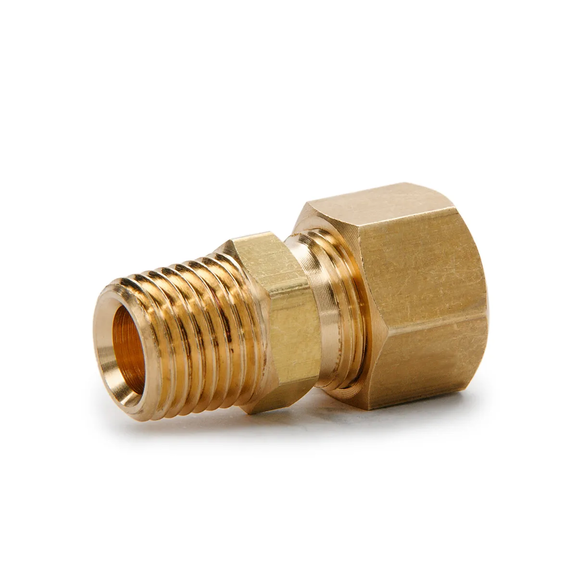

68F Nipple for pipe in inches with pipethread
Specifications

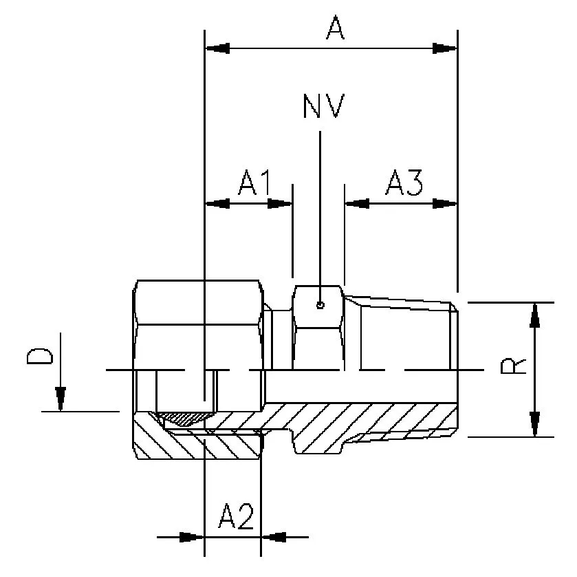

| Item number: | Tube O.D. D inch. | Thread R | A | A1 | A2 | A3 | HEX |
|---|---|---|---|---|---|---|---|
| 68F 1/8x1/8 | 1/8 | 1/8 | 22,0 | 7,0 | 5,0 | 10,0 | 11 |
| 68F 3/16x1/8 | 3/16 | 1/8 | 22,5 | 7,5 | 5,0 | 10,0 | 11 |
| 68F 3/16x1/4 | 3/16 | 1/4 | 23,5 | 7,5 | 5,0 | 11,0 | 14 |
| 68F 5/16x1/8 | 5/16 | 1/8 | 23,5 | 8,5 | 5,5 | 10,0 | 13 |
| 68F 5/16x1/4 | 5/16 | 1/4 | 24,5 | 8,5 | 5,5 | 11,0 | 14 |
| 68F 5/16x3/8 | 5/16 | 3/8 | 27,5 | 8,5 | 5,5 | 13,0 | 17 |
| 68F 5/16x1/2 | 5/16 | 1/2 | 31,0 | 8,5 | 5,5 | 16,0 | 21 |
| 68F 5/8x3/8 | 5/8 | 3/8 | 31,0 | 11,5 | 8,0 | 13,0 | 21 |
| 68F 5/8x1/2 | 5/8 | 1/2 | 34,0 | 11,5 | 8,0 | 16,0 | 21 |
| 68F 1/4x1/8 | 1/4 | 1/8 | 23,0 | 8,0 | 5,5 | 10,0 | 11 |
| 68F 1/4x1/4 | 1/4 | 1/4 | 24,0 | 8,0 | 5,5 | 11,0 | 14 |
| 68F 1/4x3/8 | 1/4 | 3/8 | 28,0 | 9,0 | 6,5 | 13,0 | 17 |
| 68F 3/8x1/8 | 3/8 | 1/8 | 24,0 | 9,0 | 6,5 | 10,0 | 14 |
| 68F 3/8x1/4 | 3/8 | 1/4 | 25,0 | 9,0 | 6,0 | 11,0 | 14 |
| 68F 3/8x3/8 | 3/8 | 3/8 | 28,0 | 9,0 | 6,0 | 13,0 | 17 |
| 68F 3/8x1/2 | 3/8 | 1/2 | 31,5 | 9,0 | 6,0 | 16,0 | 21 |
| 68F 1/2x1/4 | 1/2 | 1/4 | 26,5 | 10,5 | 7,0 | 11,0 | 18 |
| 68F 1/2x3/8 | 1/2 | 3/8 | 29,5 | 10,5 | 7,0 | 13,0 | 18 |
| 68F 1/2x1/2 | 1/2 | 1/2 | 33,0 | 10,5 | 7,0 | 16,0 | 21 |
| 68F 3/4x1/2 | 3/4 | 1/2 | 35,0 | 12,5 | 9,0 | 16,0 | 26 |
