66F Female connector (inch)
Specifications

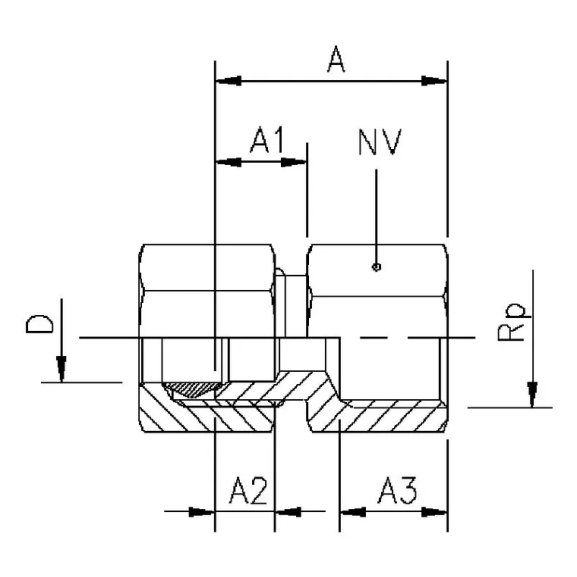

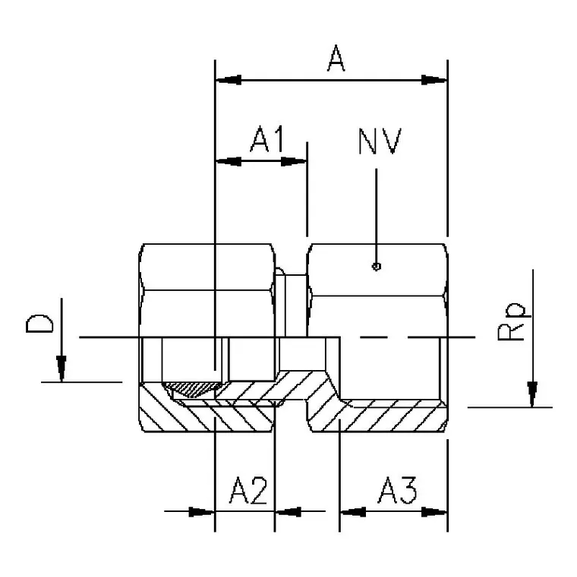

| Item number: | A | A1 | HEX | A2 | Thread Rp | A3 | Tube O.D. D inch. |
|---|---|---|---|---|---|---|---|
| 66F 3/16x1/8 | 18,5 | 7,5 | 12 | 5,0 | 1/8 | 8,0 | 3/16 |
| 66F 5/16x1/8 | 19,5 | 8,5 | 13 | 5,5 | 1/8 | 8,0 | 5/16 |
| 66F 5/16x1/4 | 21,5 | 8,5 | 15 | 5,5 | 1/4 | 10,0 | 5/16 |
| 66F 5/16x3/8 | 22,5 | 8,5 | 19 | 5,5 | 3/8 | 11,0 | 5/16 |
| 66F 1/4x1/8 | 19 | 8,0 | 12 | 5,5 | 1/8 | 8,0 | 1/4 |
| 66F 1/4x1/4 | 21,0 | 8,0 | 15 | 5,5 | 1/4 | 10,0 | 1/4 |
| 66F 1/4x3/8 | 22,0 | 8,0 | 19 | 5,5 | 3/8 | 11,0 | 1/4 |
| 66F 3/8x1/4 | 22,0 | 9,0 | 15 | 6,0 | 1/4 | 10,0 | 3/8 |
| 66F 3/8x3/8 | 23,0 | 9,0 | 19 | 6,0 | 3/8 | 11,0 | 3/8 |
| 66F 3/8x1/2 | 24,0 | 9,0 | 24 | 6,0 | 1/2 | 12,0 | 3/8 |
| 66F 1/2x3/8 | 24,5 | 10,5 | 19 | 7,0 | 3/8 | 11,0 | 1/2 |
| 66F 1/2x1/2 | 25,5 | 10,5 | 24 | 7,0 | 1/2 | 12,0 | 1/2 |
| 66F 5/8x1/2** | 26,5 | 11,5 | 24 | 8,0 | 1/2 | 12,0 | 5/8 |
About the product

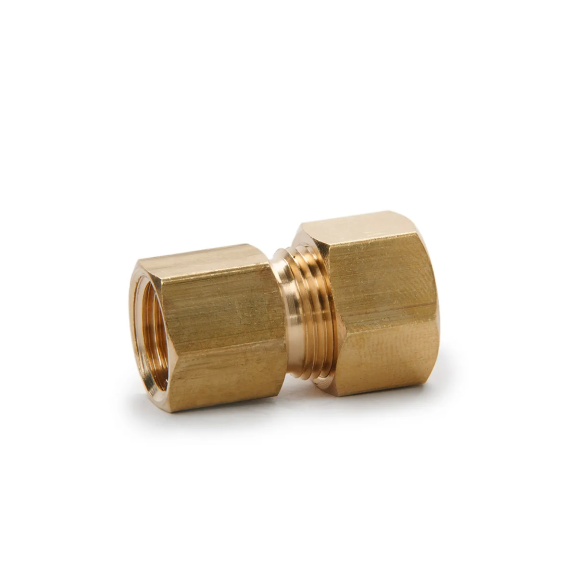

Female connector with sleeve and nut for pipe in inches with parallel pipe thread.** On request.
