70F Female elbow (inch)
Specifications

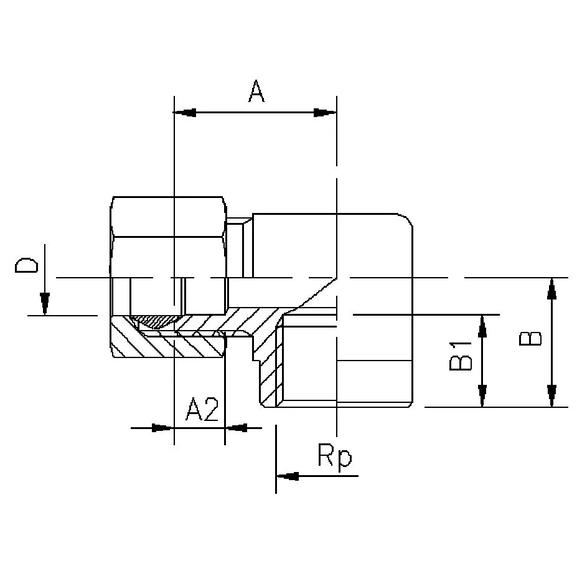

| Item number: | A | A2 | Thread Rp | B | B1 | Tube O.D. D inch. |
|---|---|---|---|---|---|---|
| 70F 5/16x1/4** | 19,5 | 5,5 | 1/4 | 17,0 | 10,0 | 5/16 |
| 70F 1/4x1/8 | 19,0 | 5,5 | 1/8 | 16,0 | 8,0 | 1/4 |
| 70F 1/4x1/4 | 19,0 | 5,5 | 1/4 | 14,0 | 10,0 | 1/4 |
| 70F 3/8x1/4 | 19,5 | 6,0 | 1/4 | 17,0 | 10,0 | 3/8 |
About the product

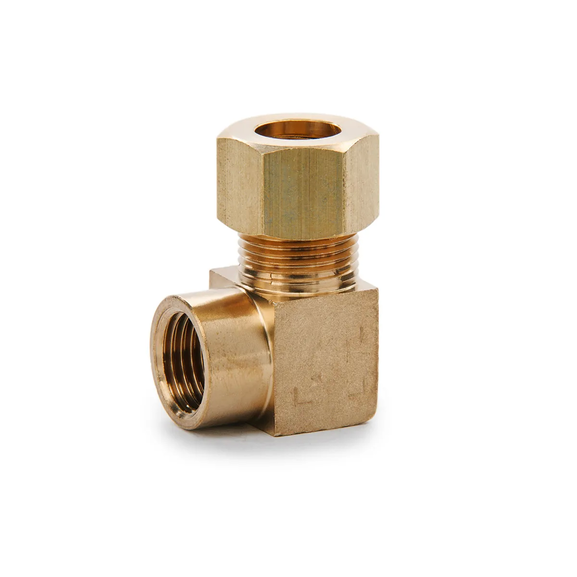

Female elbow with sleeve and nut for pipe in inches with parallel pipe thread.** On request.
