70F Female elbow
Specifications

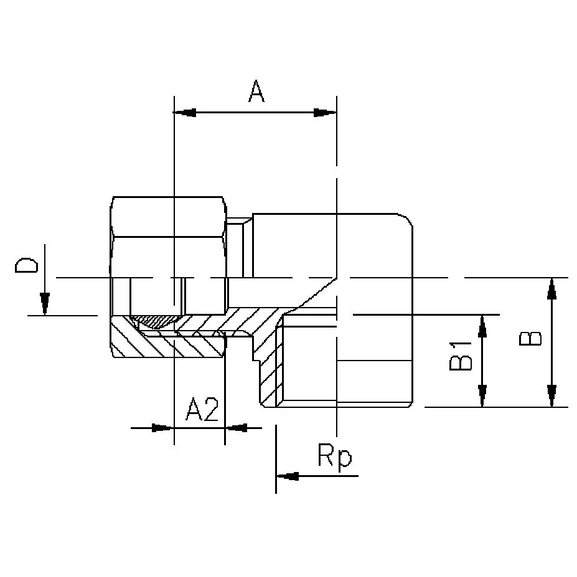

| Item number: | Tube O.D. D mm | Thread Rp | A | A2 | B | B1 |
|---|---|---|---|---|---|---|
| 70F 6x1/8 | 6 | 1/8 | 19,0 | 5,5 | 16,0 | 8,0 |
| 70F 10x1/4 | 10 | 1/4 | 19,5 | 6,0 | 17,0 | 10,0 |
About the product

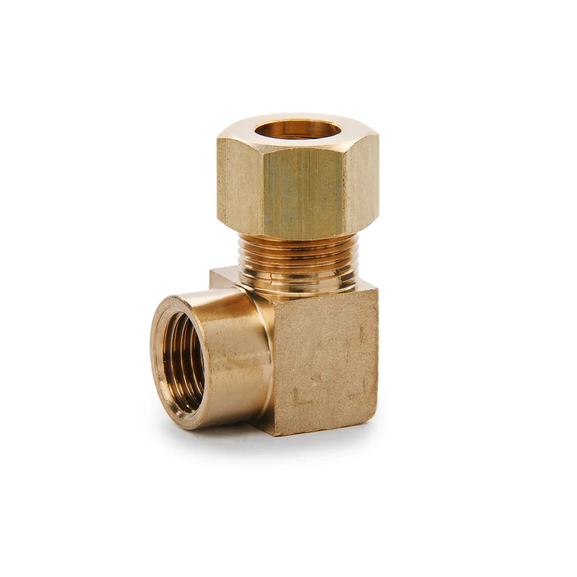

Female elbow with sleeve and nut for pipe in mm with parallel pipe thread.VVS code: 044523-xxx
