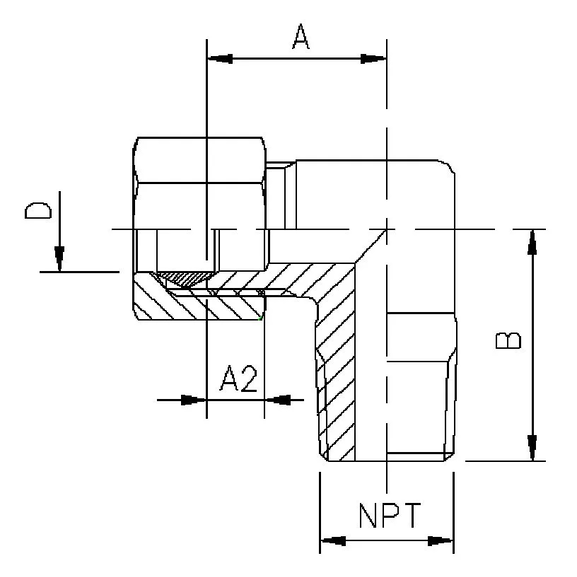

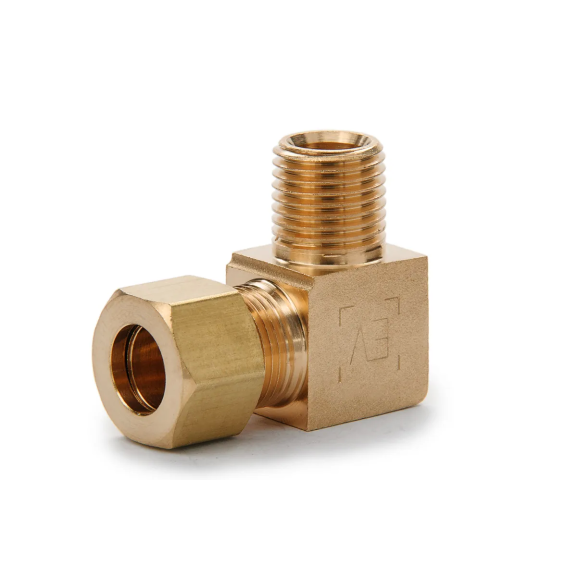

69F Nipple elbow with NPT thread (inch)
Specifications
| Item number: | A | A2 | Thread NPT | B | Tube O.D. D inch. |
|---|---|---|---|---|---|
| 69F 5/16x1/4N | 16,5 | 5,5 | 1/4N | 22,5 | 5/16 |
| 69F 1/4x1/8N** | 16,5 | 5,5 | 1/8N | 22,5 | 1/4 |
| 69F 1/4x1/4N | 17,5 | 5,5 | 1/4N | 23,0 | 1/4 |
| 69F 3/8x1/4N** | 21,0 | 6,0 | 1/4N | 22,5 | 3/8 |
About the product
Nipple elbow with sleeve and nut for pipe in inches with NPT thread.** On request.
