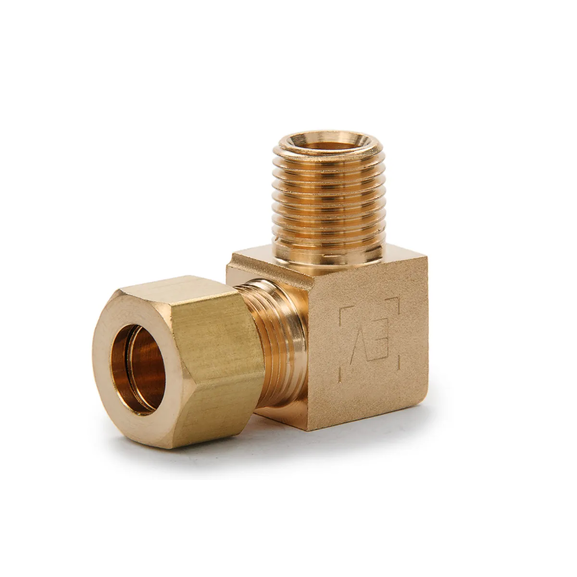

69F Nipple elbow with NPT thread
Specifications

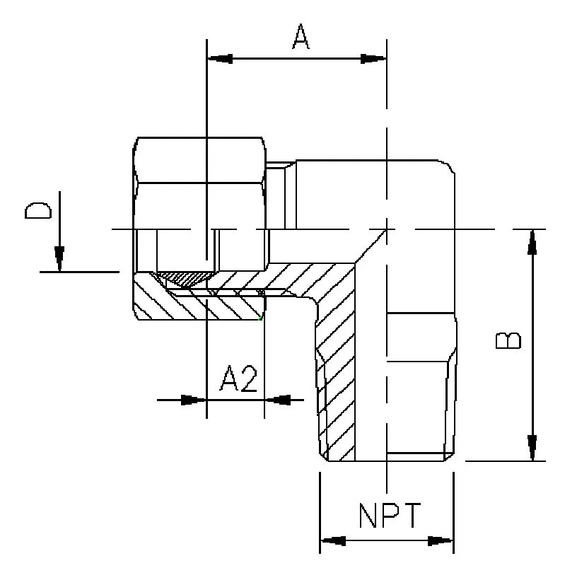

| Item number: | Thread NPT | Tube O.D. D inch. | A | A2 | B |
|---|---|---|---|---|---|
| 69F 10x1/8N | 1/8N | 10 | 18,0 | 6,0 | 22,5 |
| 69F 8x1/4N | 1/4N | 8 | 17,0 | 5,5 | 22,5 |
| 69F 10x1/4N | 1/4N | 10 | 21,0 | 6,0 | 22,5 |
| Item number: | Thread NPT | Tube O.D. D inch. | A | A2 | B |
|---|---|---|---|---|---|
| 69F 10x1/8N | 1/8N | 10 | 18,0 | 6,0 | 22,5 |
| 69F 8x1/4N | 1/4N | 8 | 17,0 | 5,5 | 22,5 |
| 69F 10x1/4N | 1/4N | 10 | 21,0 | 6,0 | 22,5 |
