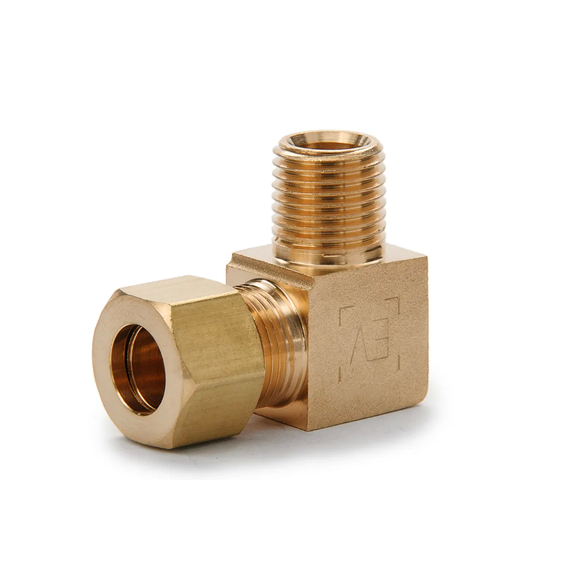

69F Nipple elbow (inch)
Specifications

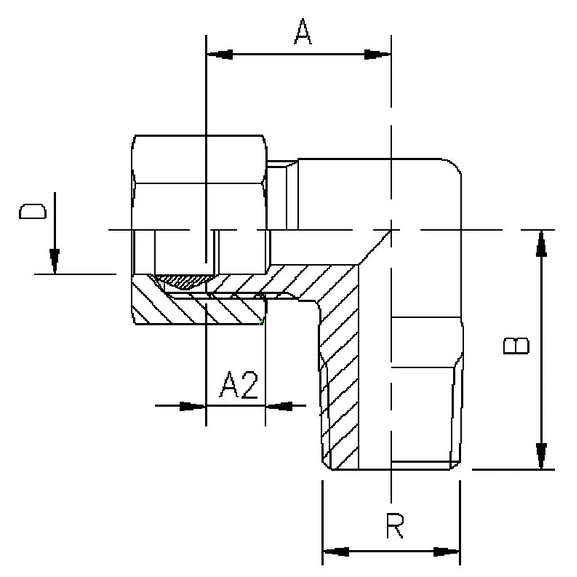

| Item number: | A | Thread R | A2 | B | Tube O.D. D inch. |
|---|---|---|---|---|---|
| 69F 3/16x1/8 | 15,5 | 1/8 | 5,0 | 20,4 | 3/16 |
| 69F 3/16x1/4 | 16,0 | 1/4 | 5,0 | 24,5 | 3/16 |
| 69F 5/16x1/8 | 17,0 | 1/8 | 5,5 | 22,5 | 5/16 |
| 69F 5/16x1/4 | 17,0 | 1/4 | 5,5 | 22,5 | 5/16 |
| 69F 5/16x3/8 | 19,0 | 3/8 | 6,0 | 24,5 | 5/16 |
| 69F 1/8x1/8 | 17,0 | 1/8 | 5,0 | 24,0 | 1/8 |
| 69F 1/4x1/8 | 16,5 | 1/8 | 5,5 | 22,5 | 1/4 |
| 69F 1/4x1/4 | 16,5 | 1/4 | 5,5 | 23,0 | 1/4 |
| 69F 3/8x1/8 | 18,0 | 1/8 | 6,0 | 20,5 | 3/8 |
| 69F 3/8x1/4 | 20,0 | 1/4 | 6,0 | 22,5 | 3/8 |
| 69F 3/8x3/8 | 19,5 | 3/8 | 6,0 | 24,5 | 3/8 |
| 69F 3/8x1/2 | 22,0 | 1/2 | 6,0 | 31,0 | 3/8 |
| 69F 1/2x3/8 | 20,5 | 3/8 | 8,0 | 24,5 | 1/2 |
| 69F 5/8x1/2 | 24,0 | 1/2 | 8,0 | 32,0 | 5/8 |
