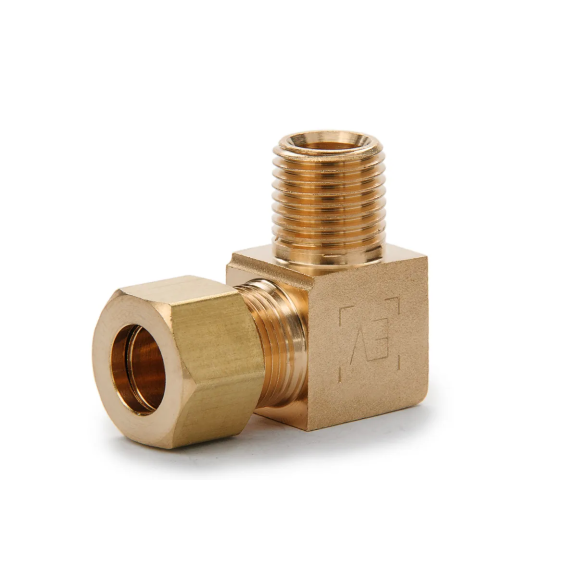

69F Nipple elbow

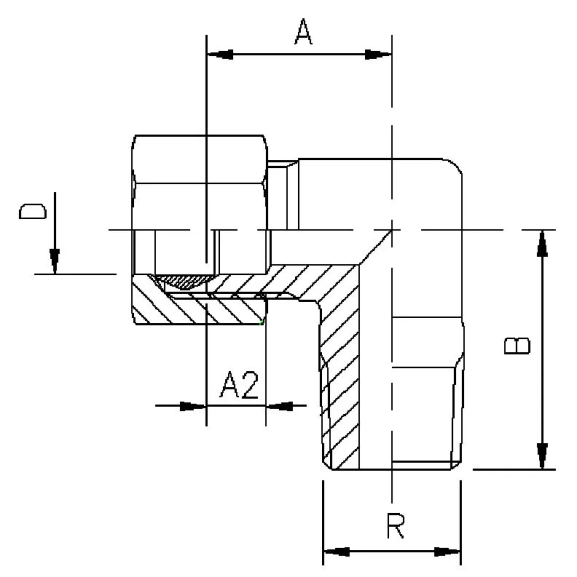

Specifications
| Item number: | VVS code xxx | A | Thread R | A2 | B | Tube O.D. D mm |
|---|---|---|---|---|---|---|
| 69F 3x1/8 | 003 | 17,5 | 1/8 | 5,0 | 23,8 | 3 |
| 69F 4x1/8 | 100 | 15,0 | 1/8 | 5,0 | 22,5 | 4 |
| 69F 5x1/8 | 005 | 15,5 | 1/8 | 5,0 | 20,4 | 5 |
| 69F 5x1/4 | 101 | 16,0 | 1/4 | 5,0 | 22,0 | 5 |
| 69F 6x1/8 | 006 | 16,5 | 1/8 | 5,5 | 22,5 | 6 |
| 69F 6x1/4 | 102 | 17,3 | 1/4 | 5,5 | 21,5 | 6 |
| 69F 8x1/8 | 104 | 17,0 | 1/8 | 5,5 | 22,5 | 8 |
| 69F 8x1/4 | 107 | 17,0 | 1/4 | 5,5 | 22,5 | 8 |
| 69F 8x3/8 | 108 | 19,0 | 3/8 | 6,0 | 24,5 | 8 |
| 69F 10x1/8 | 18,0 | 1/8 | 6,0 | 10 | ||
| 69F 10x1/4 | 010 | 20,0 | 1/4 | 6,0 | 22,5 | 10 |
| 69F 10x3/8 | 116 | 19,5 | 3/8 | 6,0 | 24,5 | 10 |
| 69F 10x1/2 | 118 | 22,0 | 1/2 | 6,0 | 31,0 | 10 |
| 69F 12x1/4 | 127 | 20,7 | 1/4 | 7,0 | 24,5 | 12 |
| 69F 12x3/8 | 012 | 20,5 | 3/8 | 7,0 | 24,5 | 12 |
| 69F 12x1/2 | 132 | 22,5 | 1/2 | 7,0 | 30,0 | 12 |
| 69F 15x3/8 | 166 | 23,0 | 3/8 | 8,0 | 25,5 | 15 |
| 69F 15x1/2 | 015 | 24,0 | 1/2 | 8,0 | 32,0 | 15 |
| 69F 16x1/2 | 189 | 24,0 | 1/2 | 8,0 | 32,0 | 16 |
About the product
Nipple elbow with sleeve and nut for pipe in mm with pipe thread.VVS code: 044521-xxx
