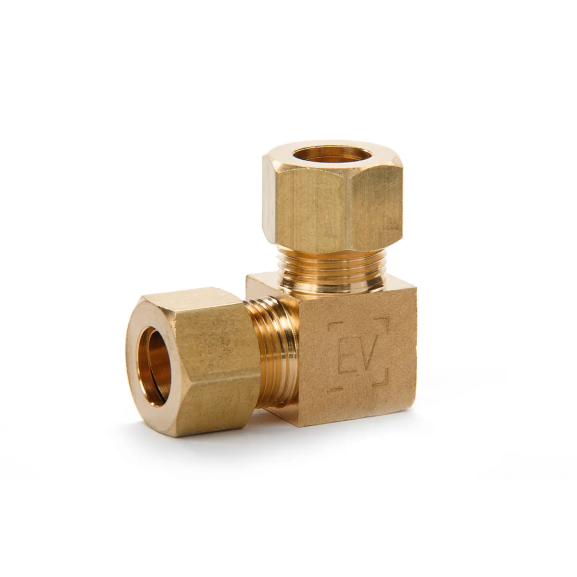

65F Elbow union (inch)
Specifications

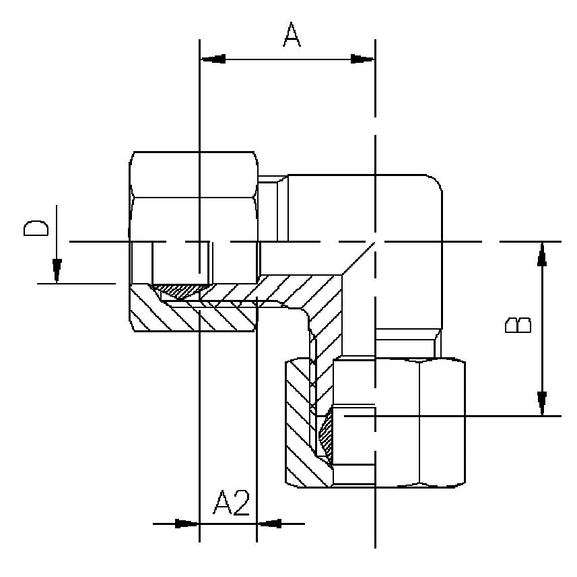

| Item number: | Tube O.D. D mm | A | A2 | B |
|---|---|---|---|---|
| 65F 3/16 | 3/16 | 16,5 | 5,0 | 16,5 |
| 65F 1/4 | 1/4 | 16,5 | 5,5 | 16,5 |
| 65F 3/8 | 3/8 | 19,0 | 6,0 | 19,0 |
| 65F 1/2** | 1/2 | 21,5 | 7,0 | 21,5 |
About the product
Elbow union with sleeves and nuts for pipe in inches.** On request.
