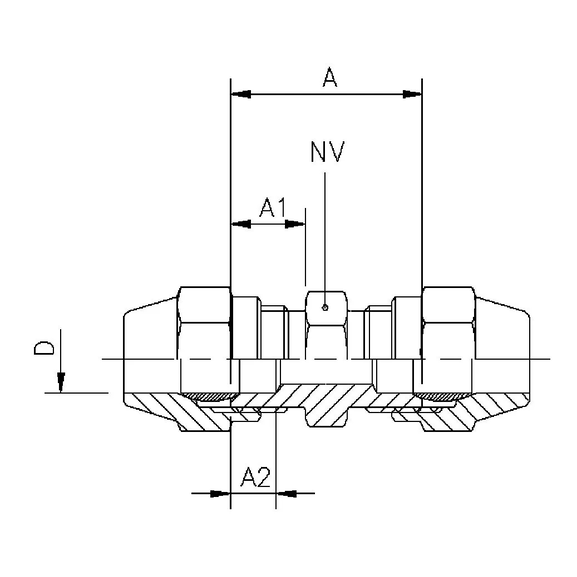

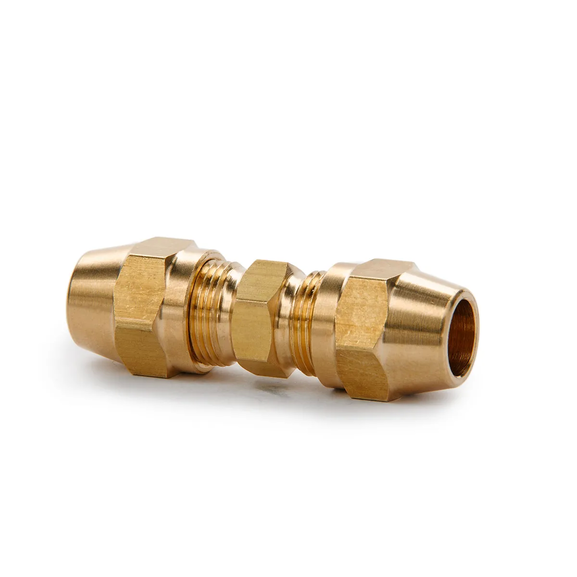

62LB Connector (mm)
Specifications
| Item number: | Tube O.D. D mm | A | A1 | A2 | HEX |
|---|---|---|---|---|---|
| 62LB 6** | 6 | 21,0 | 8,0 | 5,5 | 11 |
| 62LB 8** | 8 | 22,0 | 8,5 | 5,5 | 13 |
| 62LB 10** | 10 | 24,0 | 9,0 | 6,0 | 14 |
| 62LB 12** | 12 | 28,0 | 10,5 | 7,0 | 18 |
About the product
Connector for pipe in mm.** On request.
| Item number: | Tube O.D. D mm | A | A1 | A2 | HEX |
|---|---|---|---|---|---|
| 62LB 6** | 6 | 21,0 | 8,0 | 5,5 | 11 |
| 62LB 8** | 8 | 22,0 | 8,5 | 5,5 | 13 |
| 62LB 10** | 10 | 24,0 | 9,0 | 6,0 | 14 |
| 62LB 12** | 12 | 28,0 | 10,5 | 7,0 | 18 |
