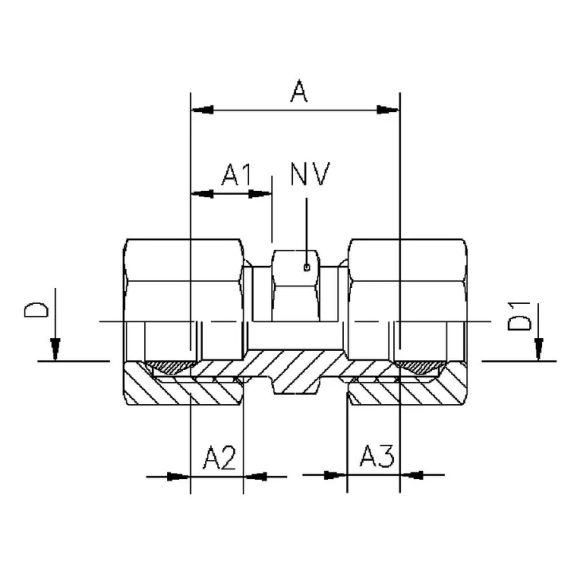

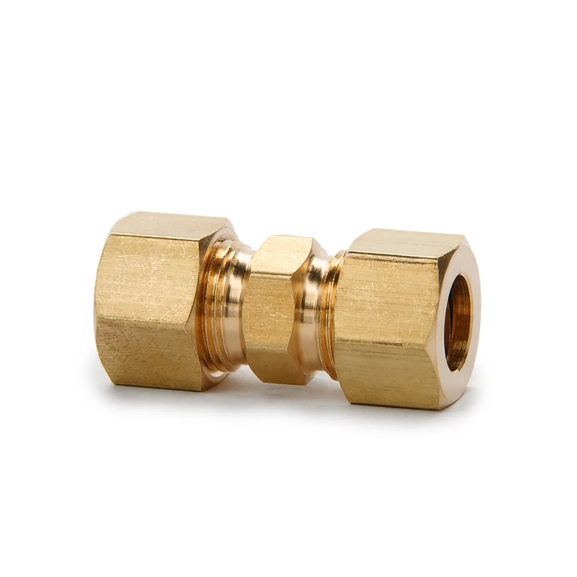

62F Connector (inch)
Specifications
| Item number: | A | A1 | HEX | A2 | A3 | Tube O.D. D inch. | Tube O.D. D1 inch | A4 |
|---|---|---|---|---|---|---|---|---|
| 62F 3/16x3/16 | 19 | 7,5 | 10 | 5,0 | 5,0 | 3/16 | 3/16 | 7,5 |
| 62F 5/16x5/16 | 22 | 8,5 | 13 | 5,5 | 5,5 | 5/16 | 5/16 | 8,5 |
| 62F 1/8x1/8 | 18,0 | 7,0 | 8 | 5,0 | 5,0 | 1/8 | 1/8 | 7,0 |
| 62F 1/4x1/4 | 21 | 8,0 | 11 | 5,5 | 5,5 | 1/4 | 1/4 | 8,0 |
| 62F 3/8x5/16 | 23,5 | 8,5 | 14 | 6,0 | 5,5 | 3/8 | 5/16 | 8,5 |
| 62F 3/8x3/8 | 24,0 | 9,0 | 14 | 6,0 | 6,0 | 3/8 | 3/8 | 9,0 |
| 62F 3/8x1/4 | 23 | 9,0 | 15 | 6,0 | 5,0 | 3/8 | 1/4 | 8,0 |
| 62F 1/2x1/2 | 28,0 | 10,5 | 18 | 7,0 | 7,0 | 1/2 | 1/2 | 10,5 |
