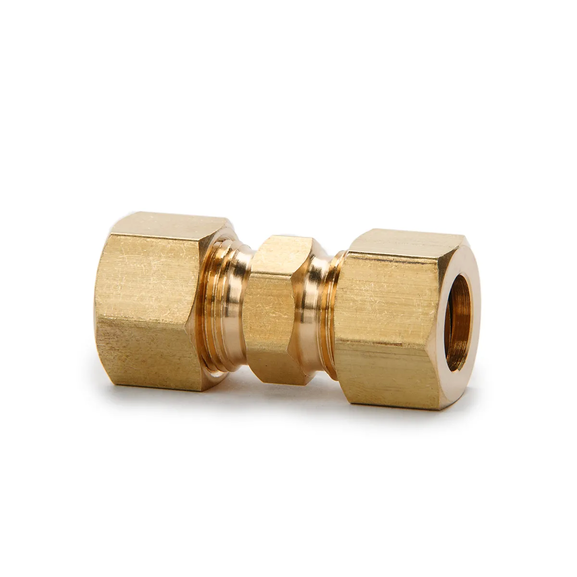

62F Connector
Specifications

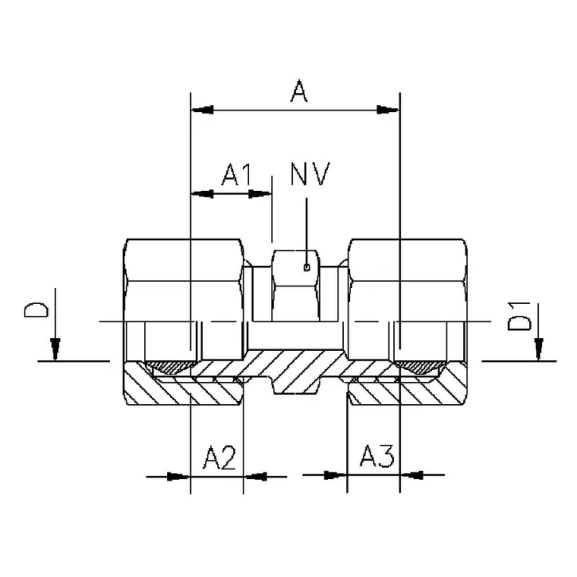

| Item number: | Tube O.D. D mm | Tube O.D. D1 mm | VVS code xxx | A | A1 | A2 | A3 | HEX |
|---|---|---|---|---|---|---|---|---|
| 62F 3x3 | 3 | 3 | 003 | 18,0 | 7,0 | 5,0 | 5,0 | 8 |
| 62F 4x4 | 4 | 4 | 004 | 18,0 | 7,0 | 5,0 | 5,0 | 8 |
| 62F 5x5 | 5 | 5 | 005 | 19,0 | 7,5 | 5,5 | 5,5 | 10 |
| 62F 6x6 | 6 | 6 | 006 | 21,0 | 8,0 | 5,5 | 5,5 | 11 |
| 62F 8x8 | 8 | 8 | 008 | 22,0 | 8,5 | 5,5 | 5,5 | 13 |
| 62F 10x6 | 10 | 6 | 23,0 | 9,0 | 6,0 | 5,5 | ||
| 62F 10x8 | 10 | 8 | 113 | 23,5 | 8,5 | 6,0 | 5,5 | 14 |
| 62F 10x10 | 10 | 10 | 010 | 24,0 | 9,0 | 6,0 | 6,0 | 14 |
| 62F 12x12 | 12 | 12 | 012 | 28,0 | 10,5 | 7,0 | 7,0 | 18 |
| 62F 15x15 | 15 | 15 | 015 | 30,0 | 11,5 | 8,0 | 8,0 | 21 |
| 62F 16x16 | 16 | 16 | 016 | 30,0 | 11,5 | 8,0 | 8,0 | 21 |
About the product
Connector with sleeve for pipe in mm.VVS code: 044505-xxx
