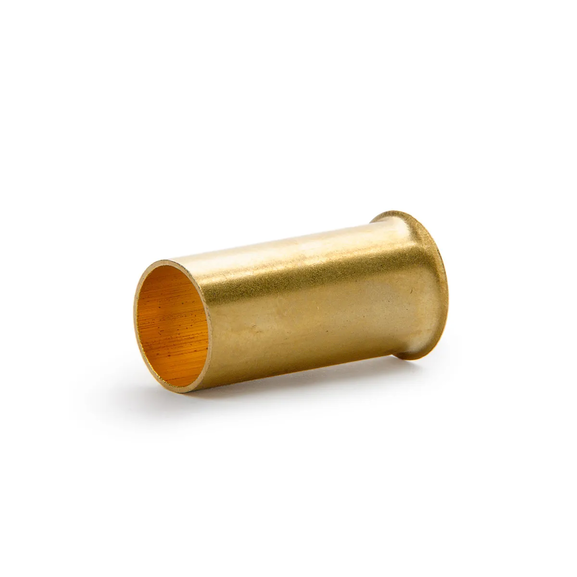

59F Bushing
Specifications

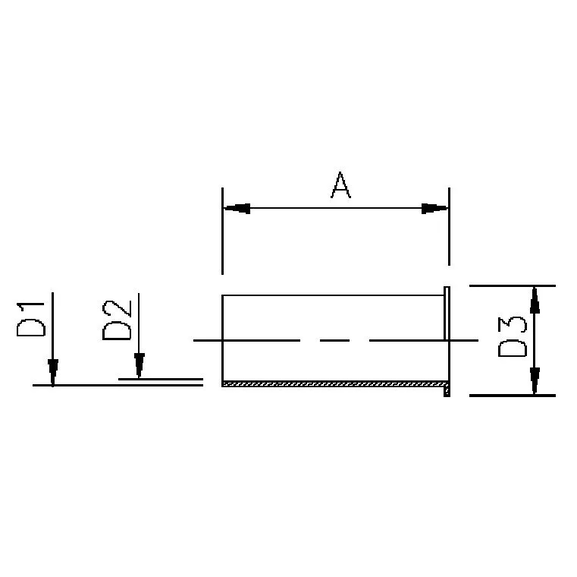

| Item number: | VVS code xxx | A | Dia. D1 mm | Dia. D2 mm | Dia. D3 mm |
|---|---|---|---|---|---|
| 59F 3,0 | 030 | 8,0 | 3,0 | 2,6 | 3,8 |
| 59F 4,0 | 040 | 13,0 | 4,0 | 3,1 | 5,5 |
| 59F 4,3 | 043 | 13,0 | 4,3 | 3,3 | 6,0 |
| 59F 4,7 | 047 | 13,0 | 4,7 | 3,8 | 6,2 |
| 59F 4,9 | 049 | 13,0 | 4,9 | 4,0 | 6,4 |
| 59F 6,3 | 064 | 12,0 | 6,3 | 5,7 | 7,5 |
| 59F 6,0 | 060 | 15,0 | 6,0 | 5,1 | 7,5 |
| 59F 7,0 | 070 | 15,0 | 7,0 | 6,1 | 8,5 |
| 59F 8,0 | 080 | 19,0 | 8,0 | 7,1 | 9,6 |
| 59F 9,0 | 090 | 21,0 | 9,0 | 8,1 | 10,5 |
| 59F 9,5 | 095 | 21,0 | 9,5 | 8,6 | 11,0 |
| 59F 10,0 | 100 | 21,0 | 10,0 | 9,1 | 11,5 |
| 59F 11,8 | 118 | 22,0 | 11,8 | 10,9 | 13,3 |
About the product
Bushing for copper and nylon pipe.Notice: D1 measure is the female Tube O.D.
VVS code: 044593-xxx.
