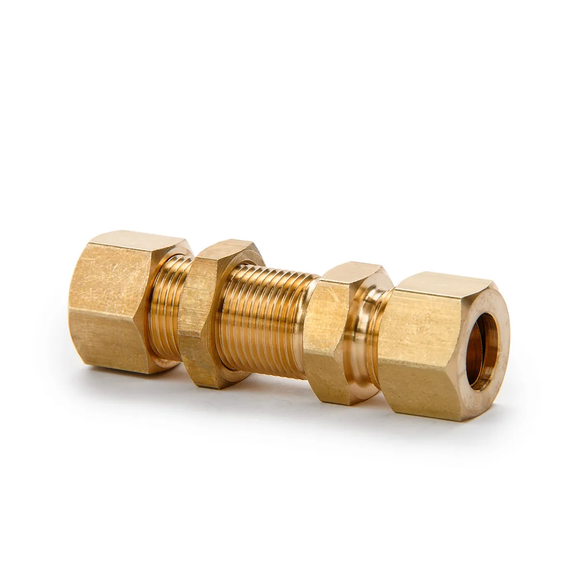

286F Bulkhead coupling
Specifications

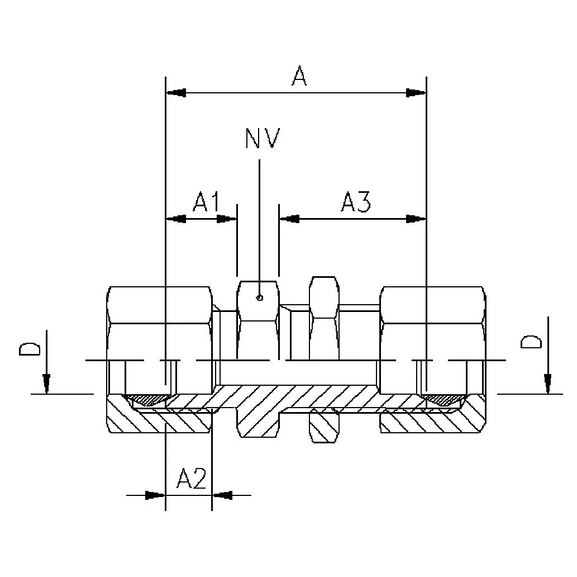

| Item number: | Tube O.D. D mm | A | A1 | A2 | A3 | HEX |
|---|---|---|---|---|---|---|
| 286F 8 | 8 | 35,0 | 8,5 | 5,5 | 21,5 | 16 |
| 286F 10 | 10 | 43,0 | 9,0 | 6,0 | 26,0 | 17 |
| Item number: | Tube O.D. D mm | A | A1 | A2 | A3 | HEX |
|---|---|---|---|---|---|---|
| 286F 8 | 8 | 35,0 | 8,5 | 5,5 | 21,5 | 16 |
| 286F 10 | 10 | 43,0 | 9,0 | 6,0 | 26,0 | 17 |
