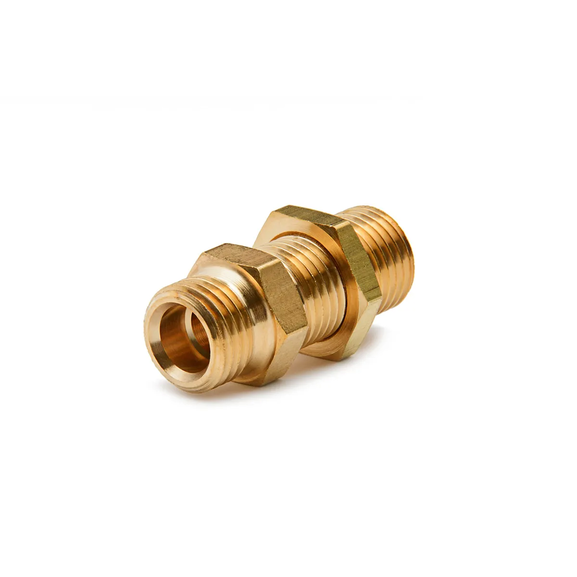

286B Bulkhead coupling
Specifications

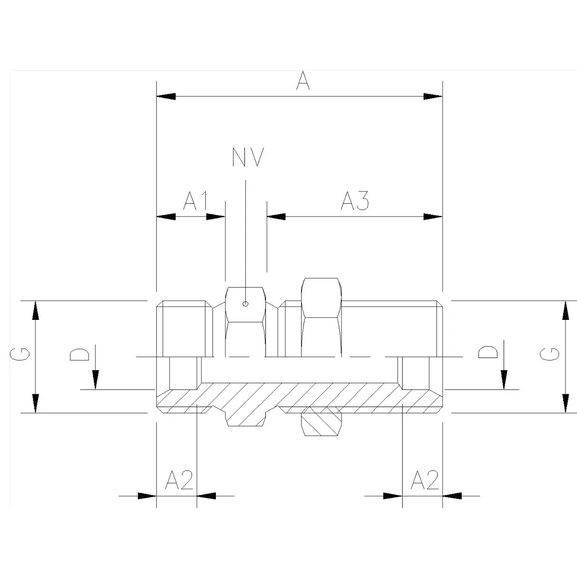

| Item number: | Thread G | Tube O.D. D mm | VVS code xxx | A | A1 | A2 | A3 | HEX |
|---|---|---|---|---|---|---|---|---|
| 286B 1/4 | 1/4 | 8 | 107 | 36 | 8,5 | 5,0 | 19,5 | 15 |
| 286B 1/2 | 1/2 | 15 | 011 | 50 | 12,0 | 12,0 | 8,0 | 23 |
