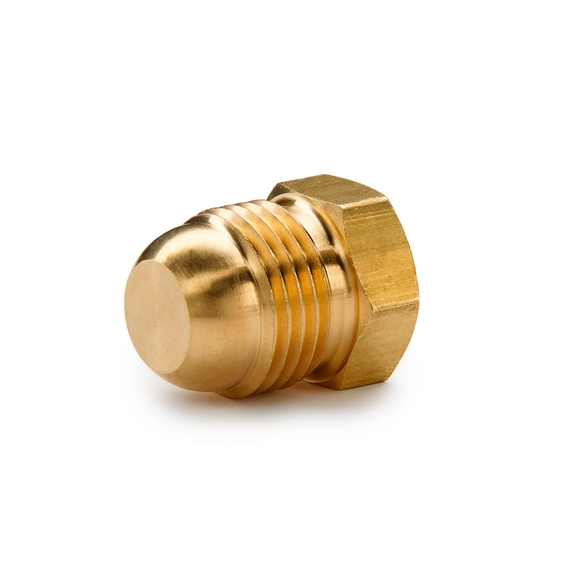

39F Plug
Specifications

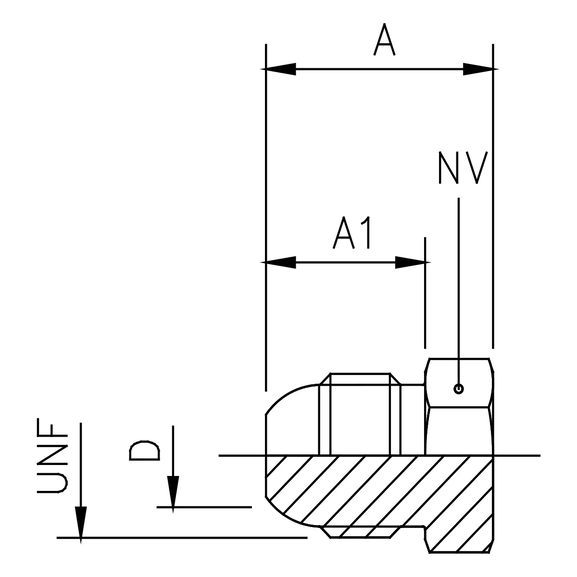

| Item number: | Tube O.D. D mm/inch. | A | A1 | HEX | Thread UNF |
|---|---|---|---|---|---|
| 39F 6 | 6 (1/4) | 16,8 | 11,8 | 11 | 7/16-20 |
| 39F 8 | 8 (5/16) | 18,5 | 13,0 | 13 | 1/2-20 |
| 39F 10 | 10 (3/8) | 20,7 | 14,7 | 16 | 5/8-18 |
| 39F 12 | 12 (1/2) | 23,5 | 16,5 | 19 | 3/4-16 |
