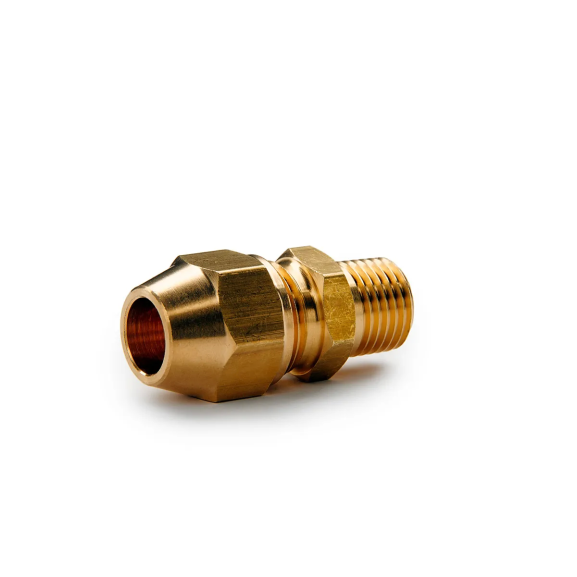

48F Nipple
Specifications

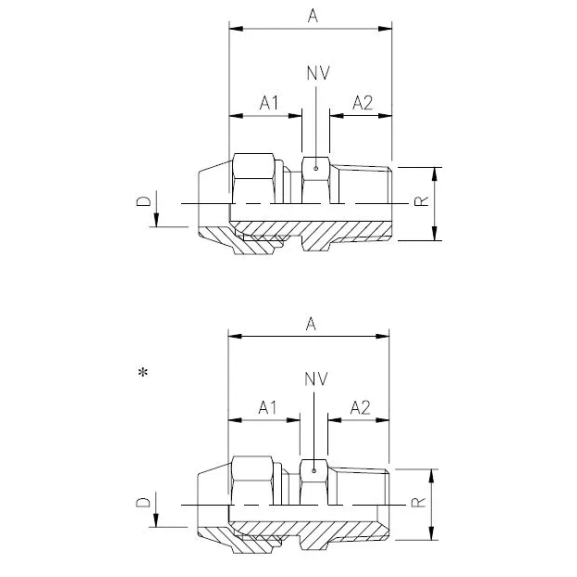

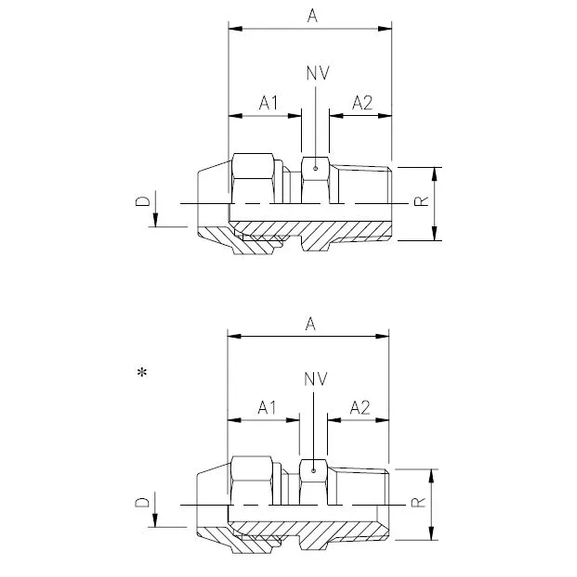

| Item number: | Tube O.D. D mm/inch. | Thread R | VVS code xxx | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|---|
| 48F 10x1/4 | 10* | 1/4 | 114 | 30,7 | 14,7 | 11 | 16 |
| 48F 5x1/4 | 5(3/16) | 1/4 | 101 | 26,6 | 10,6 | 11 | 14 |
| 48F 10x1/8 | 10 | 1/8 | 112 | 29,7 | 14,7 | 10 | 16 |
| 48F 6x1/8 | 6 (1/4) | 1/8 | 006 | 26,8 | 11,8 | 10 | 11 |
| 48F 6x1/4 | 6 (1/4) | 1/4 | 102 | 27,8 | 11,8 | 11 | 14 |
| 48F 6x3/8 | 6 (1/4) | 3/8 | 103 | 30,8 | 11,8 | 13 | 17 |
| 48F 6x1/2 | 6 (1/4) | 1/2 | 104 | 34,3 | 11,8 | 16,0 | 21 |
| 48F 8x1/8 | 8 (5/16) | 1/8 | 105 | 28,0 | 13.0 | 10 | 13 |
| 48F 8x1/4 | 8 (5/16) | 1/4 | 107 | 29,0 | 13.0 | 11 | 14 |
| 48F 8x1/2 | 8 (5/16) | 1/2 | 109 | 35,5 | 13.0 | 16,0 | 21 |
| 48F 10x3/8 | 10 (3/8) | 3/8 | 116 | 33,7 | 14,7 | 13 | 17 |
| 48F 10x1/2 | 10 (3/8) | 1/2 | 118 | 37,2 | 14,7 | 16,0 | 21 |
| 48F 12x1/4 | 12 (1/2) | 1/4 | 128 | 32,5 | 16,5 | 11 | 19 |
| 48F 12x3/8 | 12 (1/2) | 3/8 | 130 | 35,5 | 16,5 | 13 | 19 |
| 48F 12x1/2 | 12 (1/2) | 1/2 | 132 | 39,0 | 16,5 | 16,0 | 21 |
| 48F 15x1/2 | 15 | 1/2 | 154 | 40,5 | 18,0 | 16,0 | 22 |
| 48F 16x1/2 | 16 (5/8) | 1/2 | 164 | 40,5 | 18,0 | 16,0 | 22 |
About the product
Nipple with flare and pipe thread.VVS code: 368612-xxx
* ID chamfered.
