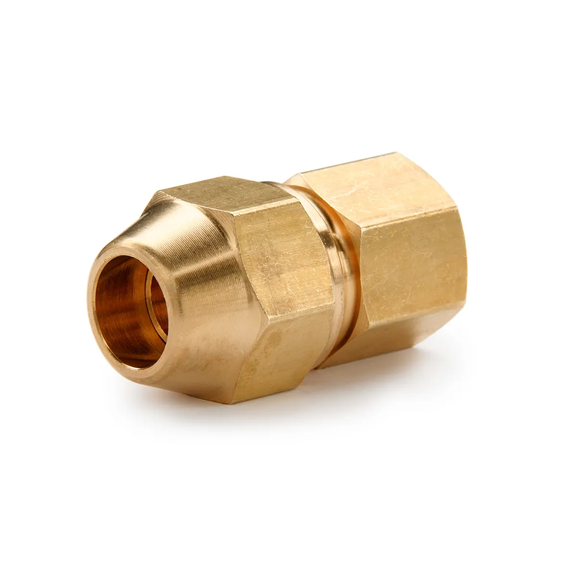

46F Female connector
Specifications

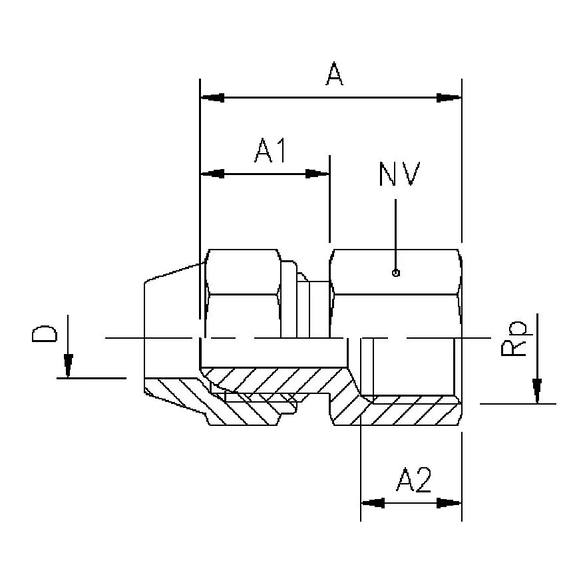

| Item number: | Tube O.D. D mm/inch. | VVS code xxx | A | A1 | HEX | A2 | Thread Rp |
|---|---|---|---|---|---|---|---|
| 46F 6x1/8 | 6 (1/4) | 006 | 22,8 | 11,8 | 12 | 8 | 1/8 |
| 46F 6x1/4 | 6 (1/4) | 102 | 24,8 | 11,8 | 15 | 10 | 1/4 |
| 46F 8x1/8** | 8 (5/16) | 104 | 24,0 | 13.0 | 13 | 8 | 1/8 |
| 46F 8x1/4 | 8 (5/16) | 107 | 26,0 | 13.0 | 15 | 10 | 1/4 |
| 46F 8x3/8 | 8 (5/16) | 108 | 27,0 | 13.0 | 19 | 11 | 3/8 |
| 46F 10x1/4 | 10 (3/8) | 114 | 27,7 | 14,7 | 16 | 10 | 1/4 |
| 46F 10x3/8 | 10 (3/8) | 116 | 28,7 | 14,7 | 19 | 11 | 3/8 |
| 46F 10x1/2 | 10 (3/8) | 118 | 29,7 | 14,7 | 24 | 12 | 1/2 |
| 46F 12x1/4** | 12 (1/2) | 128 | 29,5 | 16,5 | 19 | 10 | 1/4 |
| 46F 12x3/8 | 12 (1/2) | 130 | 30,5 | 16,5 | 19 | 11 | 3/8 |
| 46F 12x1/2 | 12 (1/2) | 132 | 31,5 | 16,5 | 24 | 12 | 1/2 |
| 46F 15x1/2 | 15 | 154 | 33,0 | 18,0 | 24 | 12 | 1/2 |
| 46F 16x1/2 | 16 (5/8) | 164 | 33,0 | 18,0 | 24 | 12 | 1/2 |
About the product
Female connector with flare and parallel pipe thread.VVS code: 368611-xxx
** On request.
