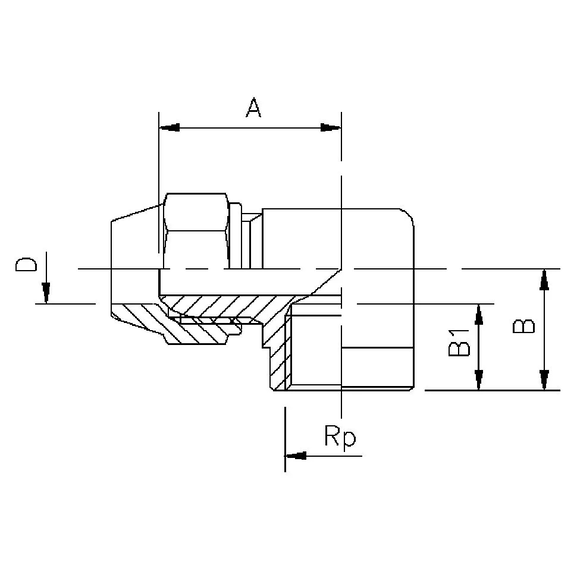

50F Female elbow
Specifications
| Item number: | Tube O.D. D mm/inch. | VVS code xxx | A | Thread Rp | B | B1 |
|---|---|---|---|---|---|---|
| 50F 5x1/8** | 5 (3/16) | 005 | 17,5 | 1/8 | 16,0 | 8,0 |
| 50F 6x1/8** | 6 (1/4) | 006 | 20,0 | 1/8 | 13,0 | 8,0 |
| 50F 6x1/4 | 6 (1/4) | 102 | 20,5 | 1/4 | 13,0 | 10,0 |
| 50F 6x3/8** | 6 (1/4) | 103 | 22,5 | 3/8 | 22,0 | 11,0 |
| 50F 8x1/4** | 8 (5/16) | 107 | 22,5 | 1/4 | 13,0 | 10,0 |
| 50F 10x1/4** | 10 (3/8) | 114 | 24,0 | 1/4 | 17,0 | 10,0 |
| 50F 12x1/2** | 12 (1/2) | 24,5 | 1/2 | 22,0 |
About the product

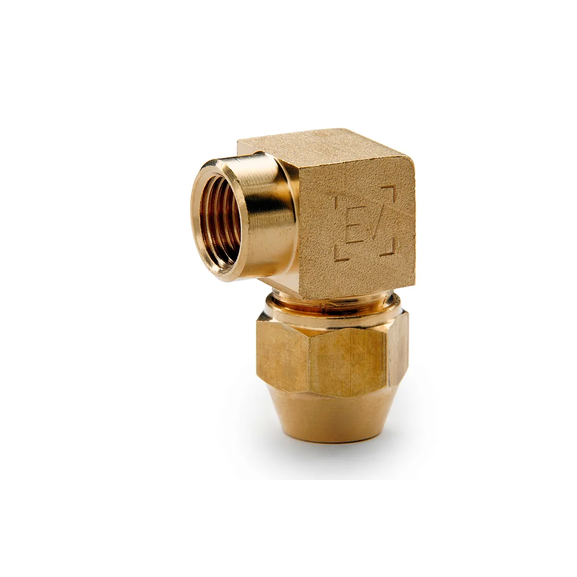

Female elbow with flare and NPT thread.VVS code: 368621-xxx
** On request.
