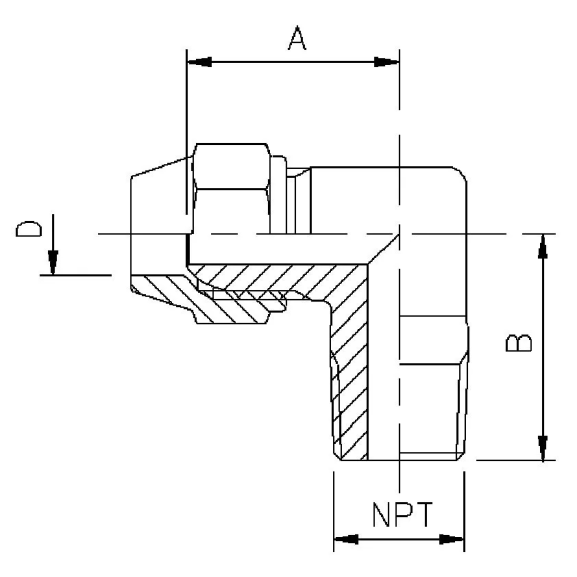

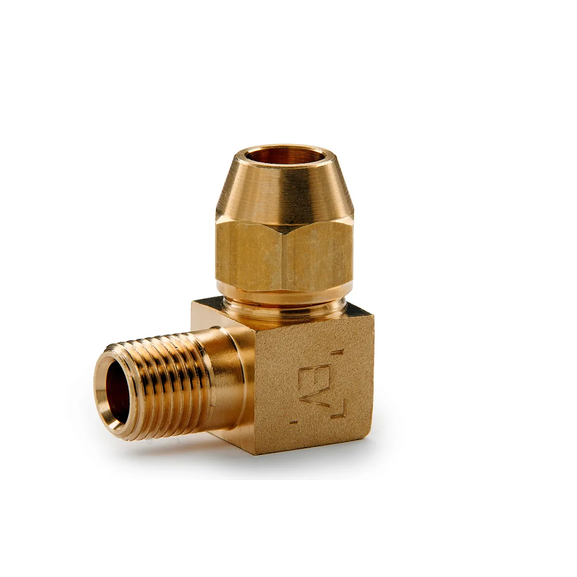

49F Nipple elbow with NPT thread
Specifications
| Item number: | Tube O.D. D mm/inch. | A | Thread NPT | B |
|---|---|---|---|---|
| 49F 5x1/8N** | 5,0 | 18,0 | 1/8N | 21,5 |
| 49F 6x1/8N** | 6,0 | 18,0 | 1/8N | 23,5 |
About the product
Nipple elbow with flare and NPT thread.** On request.
