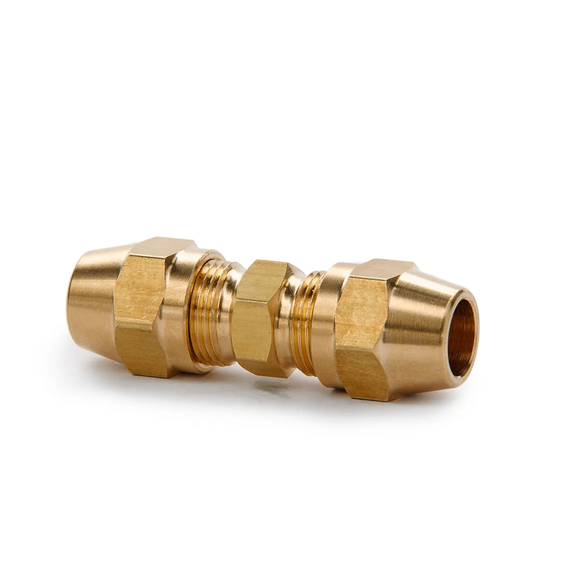

42F Connector
Specifications

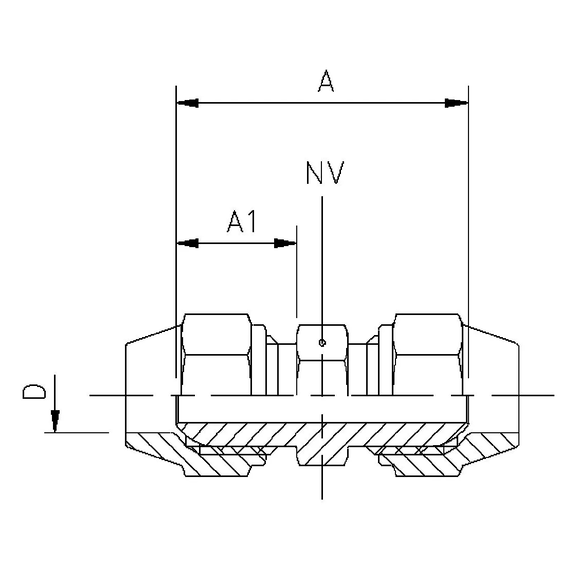

| Item number: | Tube O.D. D mm/inch. | VVS code xxx | A | A1 | HEX |
|---|---|---|---|---|---|
| 42F 5** | 5 (3/16) | 005 | 26,2 | 10,6 | 10 |
| 42F 6 | 6 (1/4) | 006 | 28,6 | 11,8 | 11 |
| 42F 8 | 8 (5/16) | 008 | 31,0 | 13.0 | 13 |
| 42F 10 | 10 (3/8) | 010 | 36,4 | 14,7 | 16 |
| 42F 12 | 12 (1/2) | 012 | 40,0 | 16,5 | 19 |
| 42F 15** | 15 | 015 | 40,0 | 16,5 | 19 |
| 42F 16 | 16 (5/8) | 016 | 42,0 | 17,5 | 22 |
About the product
Connector with flare and parallel pipe thread.VVS code: 368616-xxx.
**On request.
