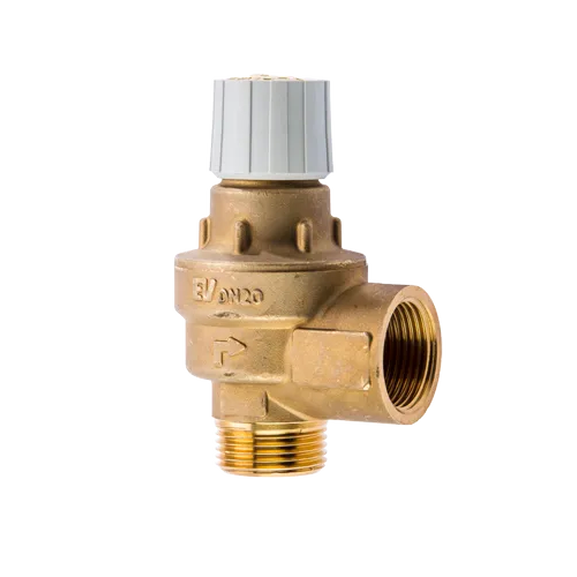

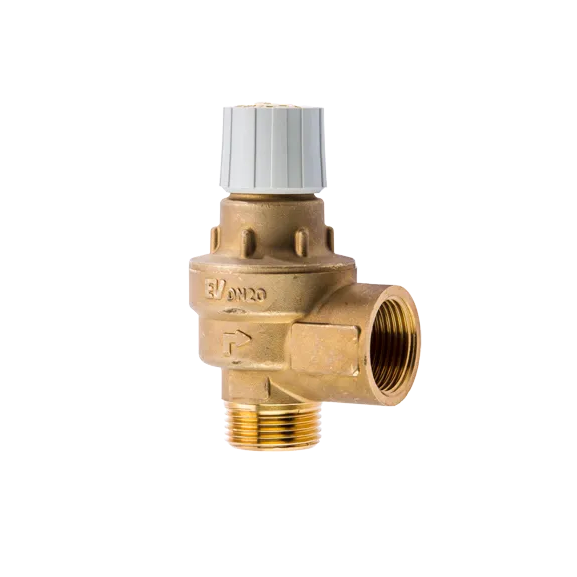

43 2218 Safety valves m/f
Specifications

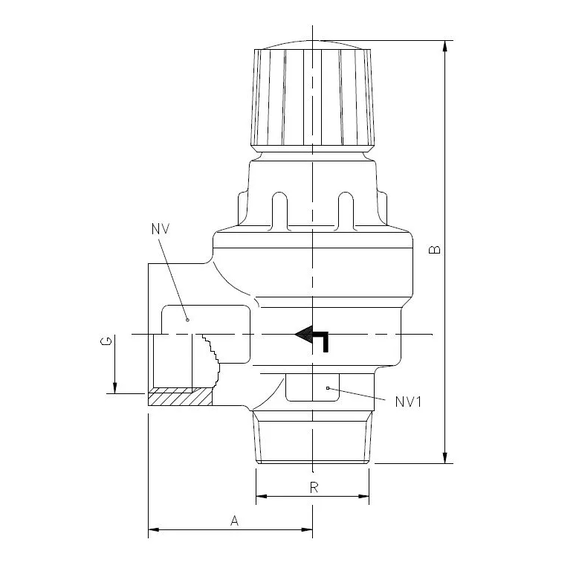

| Item number: | VVS code xxx | A | HEX | Thread R | B | Thread G | HEX1 | Set pres. bar |
|---|---|---|---|---|---|---|---|---|
| 43 2218 006 | 006 | 36,5 | 32 | 3/4 | 93,0 | 3/4 | 28 | 1,0 |
| 43 2218 106 | 106 | 36,5 | 32 | 3/4 | 93,0 | 3/4 | 28 | 1,5 |
| 43 2218 206 | 206 | 36,5 | 32 | 3/4 | 93,0 | 3/4 | 28 | 2,0 |
| 43 2218 306 | 306 | 36,5 | 32 | 3/4 | 93,0 | 3/4 | 28 | 2,5 |
| 43 2218 406 | 406 | 36,5 | 32 | 3/4 | 93,0 | 3/4 | 28 | 3,0 |
About the product
Safety valve with male pipe thread and female pipe thread.Opening pressure from 1-3 bar.
