43 2218 Safety valves for steam m/f
Specifications

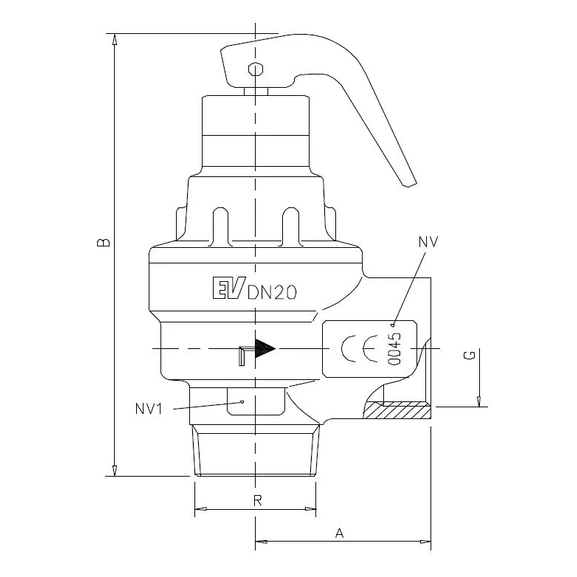

| Item number: | VVS code xxx | A | HEX | Thread R | B | Thread G | HEX1 | Set pres. bar |
|---|---|---|---|---|---|---|---|---|
| 432218 905 | 905 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 0,5 |
| *432218 9075 | 9075 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 0,75 |
| *432218 910 | 910 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 1,0 |
| *432218 915 | 915 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 1,5 |
| *432218 912 | 912 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 1,2 |
| *432218 913 | 913 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 1,3 |
| 432218 920 | 920 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 2,0 |
| 432218 921 | 921 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 2,1 |
| 432218 922 | 922 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 2,2 |
| 432218 925 | 925 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 2,5 |
| 432218 930 | 930 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 3,0 |
| 432218 940 | 940 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 4,0 |
| 432218 945 | 945 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 4,5 |
| 432218 950 | 950 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 5,0 |
| 432218 965 | 965 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 6,5 |
| 432218 970 | 970 | 36,5 | 32 | 3/4 | 97,0 | 3/4 | 28 | 7,0 |

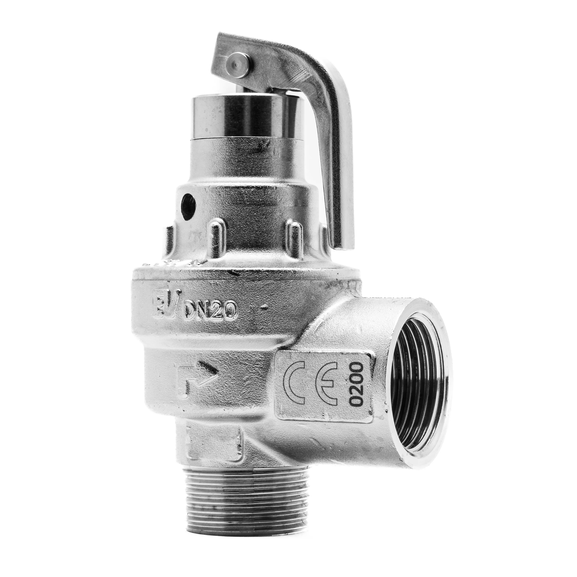

About the product
Safety valve for steam with male pipe thread.Set pressure from 0,75 - 1,5 bar with CE-marking. (According to PED and marked with *)
* The valves are delivered CE-marked for use in category II equipment and fluid group 2.
Set pressure up to 7,0 bar without CE-marking..
The set pressure is the pressure where the valve opens. An overpressure of 10% or 0,1 bar, whichever is highest, can be expected when the valve is at its full capacity.
Delivered nickleplated and with metal handle.
See instruktion manual:
