43 2217 Safety valves for steam
43 2217 Safety valves for steam
43 2217 Safety valves for steam 43 2217 Safety valves for steam

43 2217 Safety valves for steam

Specifications

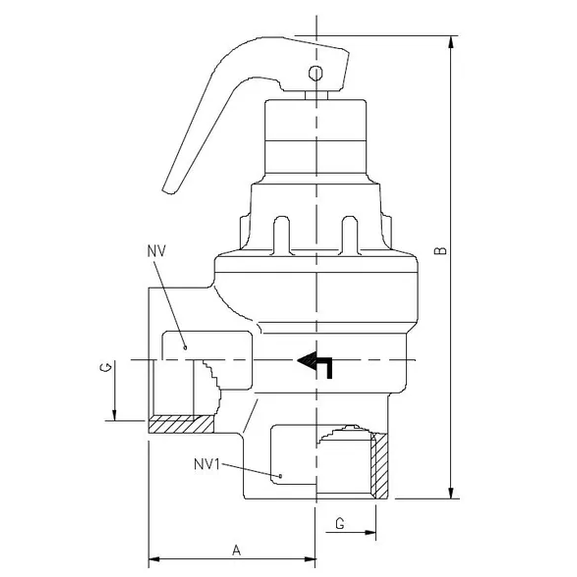

Item number: VVS code xxx A HEX B Thread G HEX1 Set pres. bar
43 2217 006 006 36,5 32 98,5 3/4 32 0,5
43 2217 016 016 36,5 32 98,5 3/4 32 0,5
43 2217 106 106 36,5 32 98,5 3/4 32 0,75
43 2217 026 026 36,5 32 98,5 3/4 32 0,7
43 2217 116 116 36,5 32 98,5 3/4 32 0,8
43 2217 126 126 36,5 32 98,5 3/4 32 0,9
43 2217 206 206 36,5 32 98,5 3/4 32 1,0
43 2217 216 216 36,5 32 98,5 3/4 32 1,2
43 2217 226 226 36,5 32 98,5 3/4 32 1,3
43 2217 316 316 36,5 32 98,5 3/4 32 2,0
43 2217 416 416 36,5 32 98,5 3/4 32 2,5
43 2217 326 326 36,5 32 98,5 3/4 32 2,1
43 2217 406 406 36,5 32 98,5 3/4 32 2,2
43 2217 426 426 36,5 32 98,5 3/4 32 3,0
43 2217 506 506 36,5 32 98,5 3/4 32 3,2
43 2217 516 516 36,5 32 98,5 3/4 32 4,0
43 2217 526 526 36,5 32 98,5 3/4 32 4,5
43 2217 606 606 36,5 32 98,5 3/4 32 5,0
43 2217 616 616 36,5 32 98,5 3/4 32 6,5
43 2217 626 626 36,5 32 98,5 3/4 32 7,0

About the product

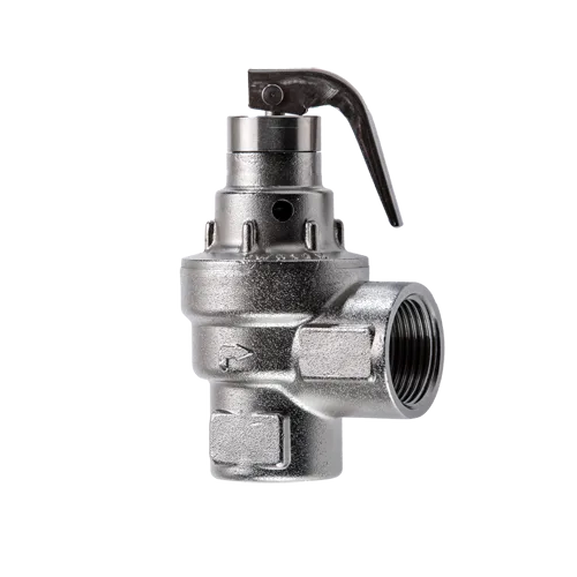

Safety valve for steam with female pipe thread.

Opening pressure from 0,75 - 1,5 bar.

Delivered nickleplated and with metal handle.
