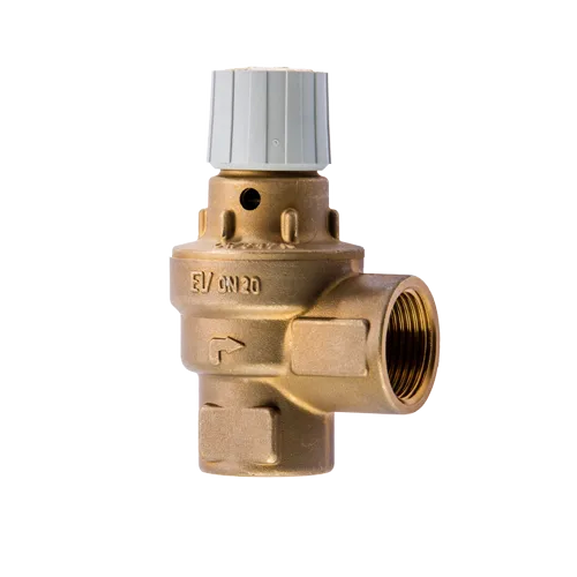

43 2215 Safety valves f/f
Specifications

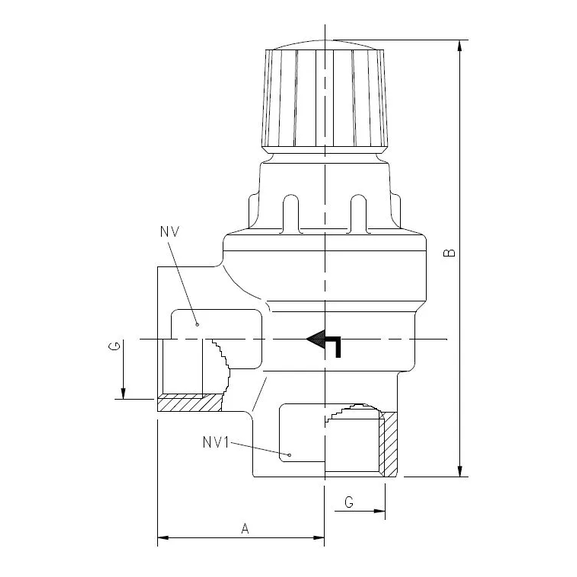

| Item number: | Set pres. bar | Thread G | VVS code xxx | A | B | HEX | HEX1 |
|---|---|---|---|---|---|---|---|
| 43 2215 006 | 1,0 | 3/4 | 006 | 36,5 | 94,5 | 32 | 32 |
| 43 2215 106 | 1,5 | 3/4 | 106 | 36,5 | 94,5 | 32 | 32 |
| 43 2215 206 | 2,0 | 3/4 | 206 | 36,5 | 94,5 | 32 | 32 |
| 43 2215 306 | 2,5 | 3/4 | 306 | 36,5 | 94,5 | 32 | 32 |
| 43 2215 406 | 3,0 | 3/4 | 406 | 36,5 | 94,5 | 32 | 32 |
About the product
Safety valve with female pipe thread.Opening pressure from 1-3 bar.
