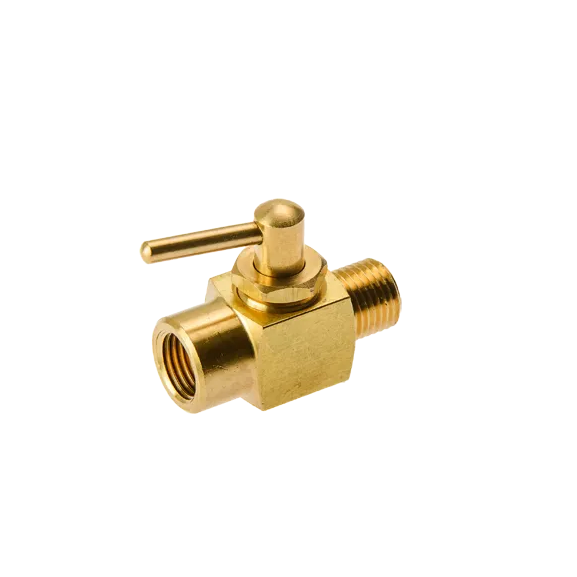

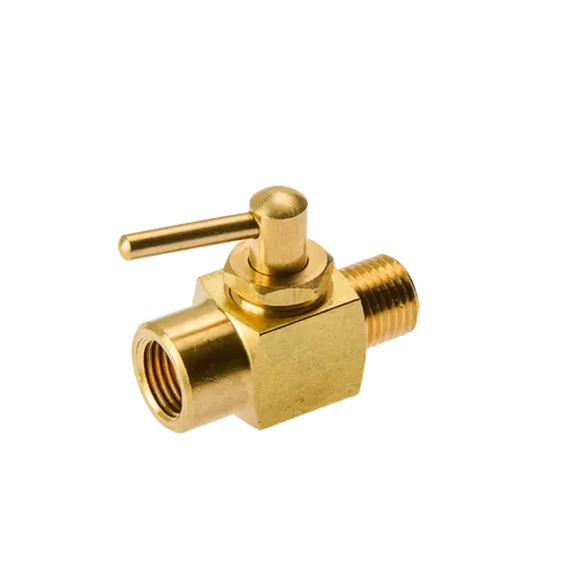

6646 On-Off mini valve
Specifications
| Item number: | A | A1 | HEX | A2 | Thread Rp | B | A3 | A4 | Thread G | Tube O.D. D |
|---|---|---|---|---|---|---|---|---|---|---|
| 6646 1/8x1/8 | 37,5 | 9,0 | 18 | 9,0 | 1/8 | 26,0 | 8,0 | 30,5 | 1/8 | 6 |
| 6646 1/4x1/4 | 45,0 | 10,0 | 18 | 11,0 | 1/4 | 26,0 | 10,0 | 30,5 | 1/4 | 8 |
About the product
Shut off cock with female and male parallel thread.

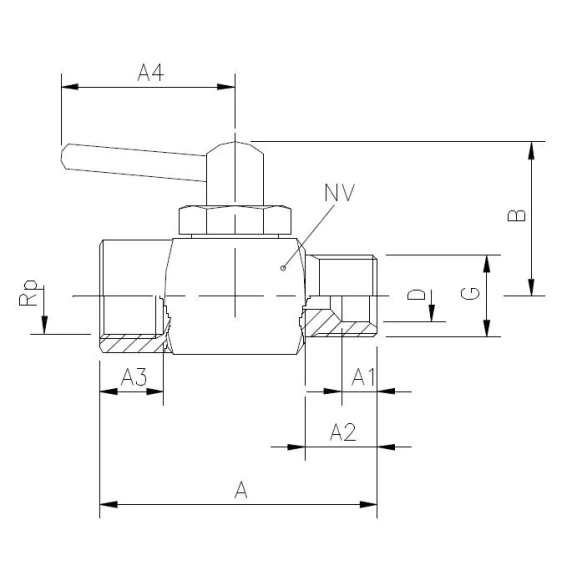

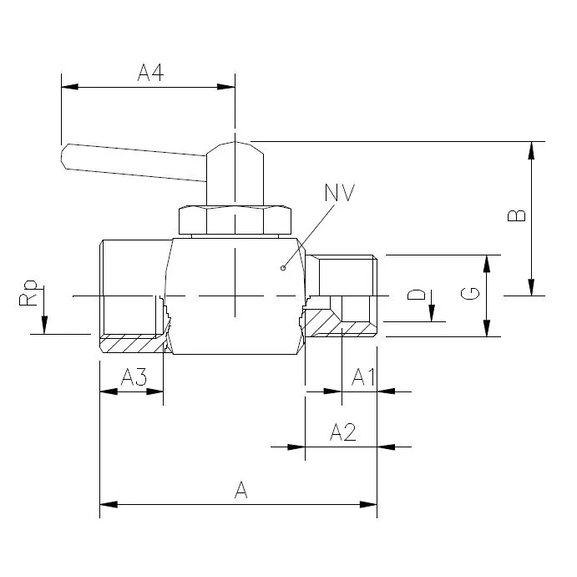

The shut off cock on the drawing is shown as open.
