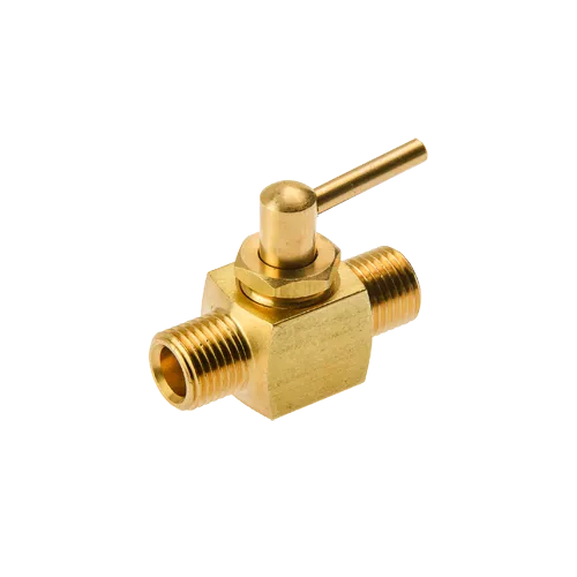

6642 Shut off cock
Specifications
| Item number: | A | A1 | A2 | B | Tube O.D. D mm | A3 | A4 | Thread G | Thread G1 | Dia. D1 | A5 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6642 1/8x1/4** | 41,5 | 9,0 | 9,0 | 26,0 | 6 | 10,0 | 11,0 | 1/8 | 1/4 | 8 | 30,5 | ||
| 6642 1/4x1/4 | 102 | 44,0 | 10,0 | 18 | 11,0 | 26,0 | 8 | 10,0 | 11,0 | 1/4 | 1/4 | 8 | 30,5 |
| 6642 1/4x3/8 | 46,0 | 10,0 | 11,0 | 26,0 | 10 | 11,0 | 13,0 | 1/4 | 3/8 | 10 | 30,5 | ||
| 6642 3/8x3/8 | 48,0 | 11,0 | 13,0 | 26,0 | 10 | 11,0 | 13,0 | 3/8 | 3/8 | 10 | 30,5 |
About the product

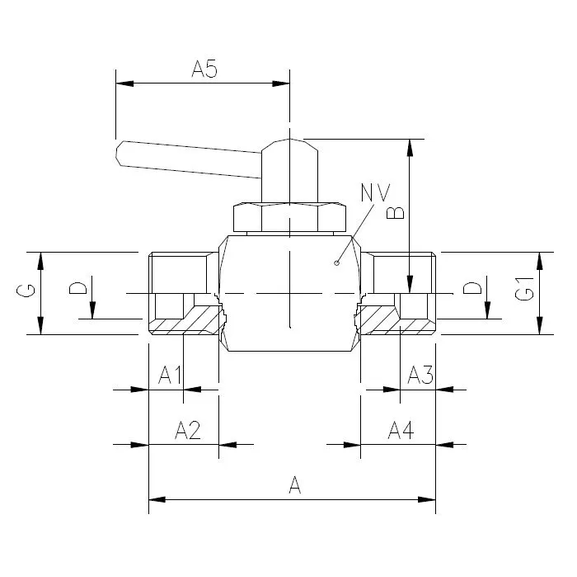

Shut off cock with parallel pipe thread.The shut off cock is at the drawing shown as open.
** On request.
